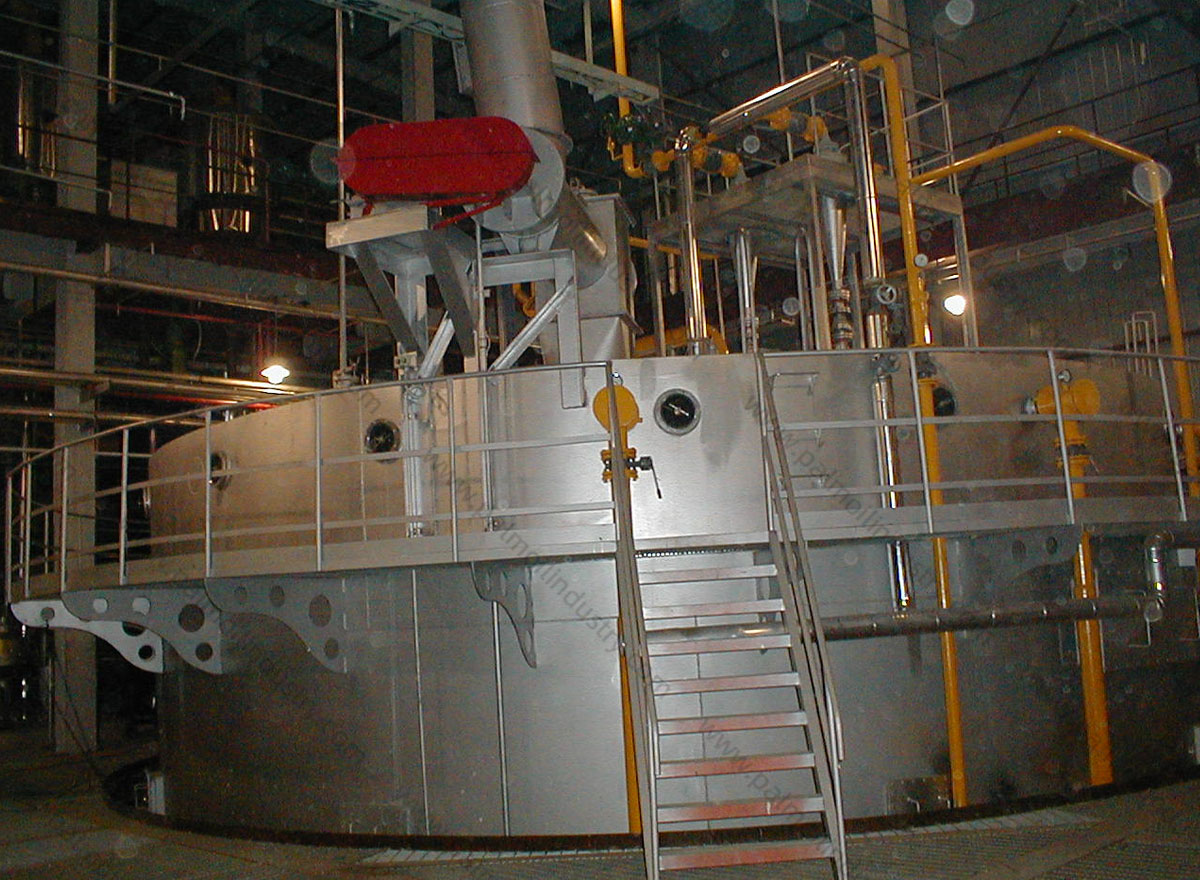

Vertical Extraction Unit

Vertical Extraction Unit Technical Features

• Vertical structure: Vertical extractors adopt a vertical structure, which better utilizes space and improves production efficiency.

• High-pressure operation: In some applications, vertical extractors can adopt high- pressure operation to improve extraction efficiency.

• No Mechanical Agitation: First-generation vertical extractors typically feature a design without mechanical agitation, reducing equipment complexity and maintenance costs.

• Multi-Stage Series Operation: Vertical extractors can be operated in a multi-stage series configuration to further enhance extraction efficiency.

• Efficient solvent recovery: Vertical extractors are equipped with efficient solvent     recovery systems that separate solvents from mixed oils, enabling solvent recycling.

Vertical Extraction Unit Application Areas

Vertical extractors are widely used in the oil processing industry for extracting oils from various oilseeds, such as palm kernel meal, soybeans, rapeseed, and peanuts. Additionally, vertical extractors are used in the high-pressure acid leaching process of laterite nickel ore   to extract metals such as nickel and cobalt from the ore. In sugar beet production, vertical    extractors are also used to extract sucrose from sugar beet cells.

Vertical Extraction Unit Equipment Selection

When selecting a vertical extractor, the following factors should be considered:

• Processing Capacity: Select an appropriate processing capacity based on production scale.

• Solvent Consumption: Choose equipment with low solvent consumption to reduce production costs.

• Steam Consumption: Select equipment with low steam consumption to improve energy efficiency.

• Equipment Material: Choose corrosion-resistant materials, such as steel-lined titanium composite materials, to extend equipment lifespan.

Vertical Extraction Unit Advantages

Vertical leaching equipment offers the following advantages:

• High-efficiency leaching: The vertical structure and high-pressure operation enhance leaching efficiency.

• Energy-saving and cost-effective: An efficient solvent recovery system and low steam consumption design reduce production costs.

• Stable operation: The absence of mechanical stirring reduces equipment complexity and maintenance costs.

• Safe and Reliable: The equipment operates stably, minimizing safety hazards during production.




Vertical leaching equipment, with its efficient, energy-saving, and safe features, has become one of the mainstream devices in the oil processing and mineral leaching industries.
