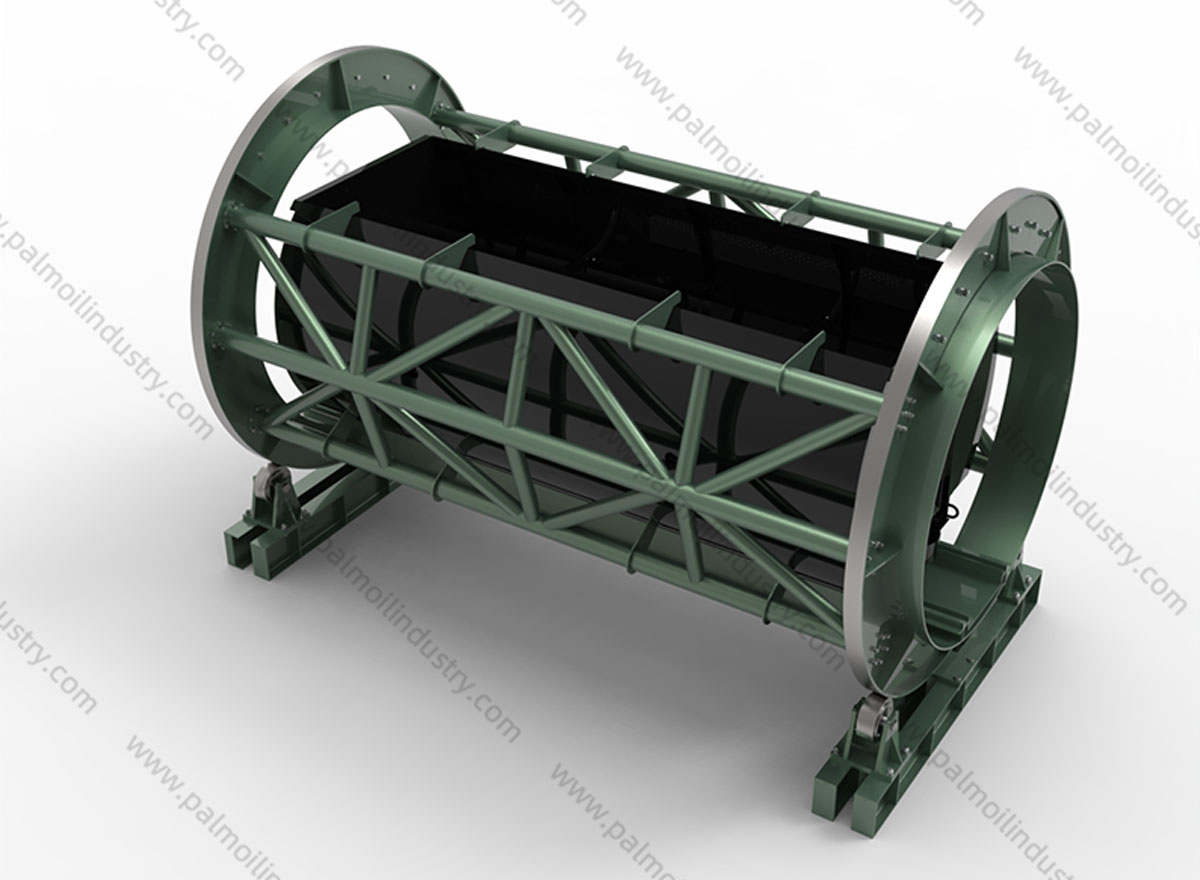

Tippler

Tippler Function and Working Method

The Tippler operates using a chain and sprocket drive system. This robust mechanism ensures precise and reliable movement of the fruit cages. Once the loaded fruit cage is positioned, the Tippler's skewers penetrate the cage, securing it in place. The machine then executes a 180° flip, effectively unloading the ripe palm fruit. This method ensures minimal fruit damage and maximum efficiency in transferring the fruit to the next stage of processing.

Tippler Material and Construction

Constructed from carbon steel, the Tippler combines strength and durability. Carbon steel is chosen for its excellent mechanical properties, including high tensile strength and wear resistance, making it ideal for withstanding the heavy loads and continuous operation typical in palm oil mills.

Tippler Key Features

• Size: Available in lengths of 3 meters and 6 meters to accommodate different production scales and facility layouts.

• Wheel Diameter: Equipped with wheels of 550 mm diameter, ensuring stable and smooth travel across the processing area.

• Driver Model: Utilizes a chain and sprocket drive system for reliable and powerful transmission of motion.

• Capacity: Offered in capacities of 10 tons, 15 tons, and 20 tons, allowing it to handle varying volumes of palm fruit.

• Power: Powered by a hydraulic/electrical motor with specifications of 11 KW, 380 V, and 50 Hz, providing sufficient power for efficient operation.

• Move Speed: Operates at a speed of 0.1 m/s, ensuring controlled and safe movement of the machine and its load.

Tippler Control System

The Tippler is equipped with a PLC Control system. This advanced system enables automated and precise control of the unloading process. It allows for easy programming of operational sequences, monitoring of critical parameters, and integration with other equipment in the processing line. The PLC system enhances operational efficiency, reduces manual intervention, and ensures consistent performance.

Tippler Performance Advantages

• Efficient Unloading: The 180° flipping mechanism ensures complete and rapid unloading of palm fruit from cages, minimizing downtime between cycles.

• Durable Construction: The carbon steel build and chain and sprocket drive system provide long - term reliability and minimal maintenance requirements.

• Flexible Capacity: Multiple capacity options make the Tippler suitable for operations of various scales, from medium to large - scale palm oil processing facilities.

• Automated Operation: The PLC Control system simplifies operation, reduces labor intensity, and ensures precise and consistent unloading, contributing to an efficient production workflow.

Tippler Applications

The Tippler is a critical component in palm oil mills and processing plants. It is primarily used after the sterilization process to unload palm fruit from cages, preparing the fruit for threshing and oil extraction. Its design and specifications make it suitable for integration into both new installations and existing facilities, enhancing their operational efficiency and productivity in the palm oil processing chain.
