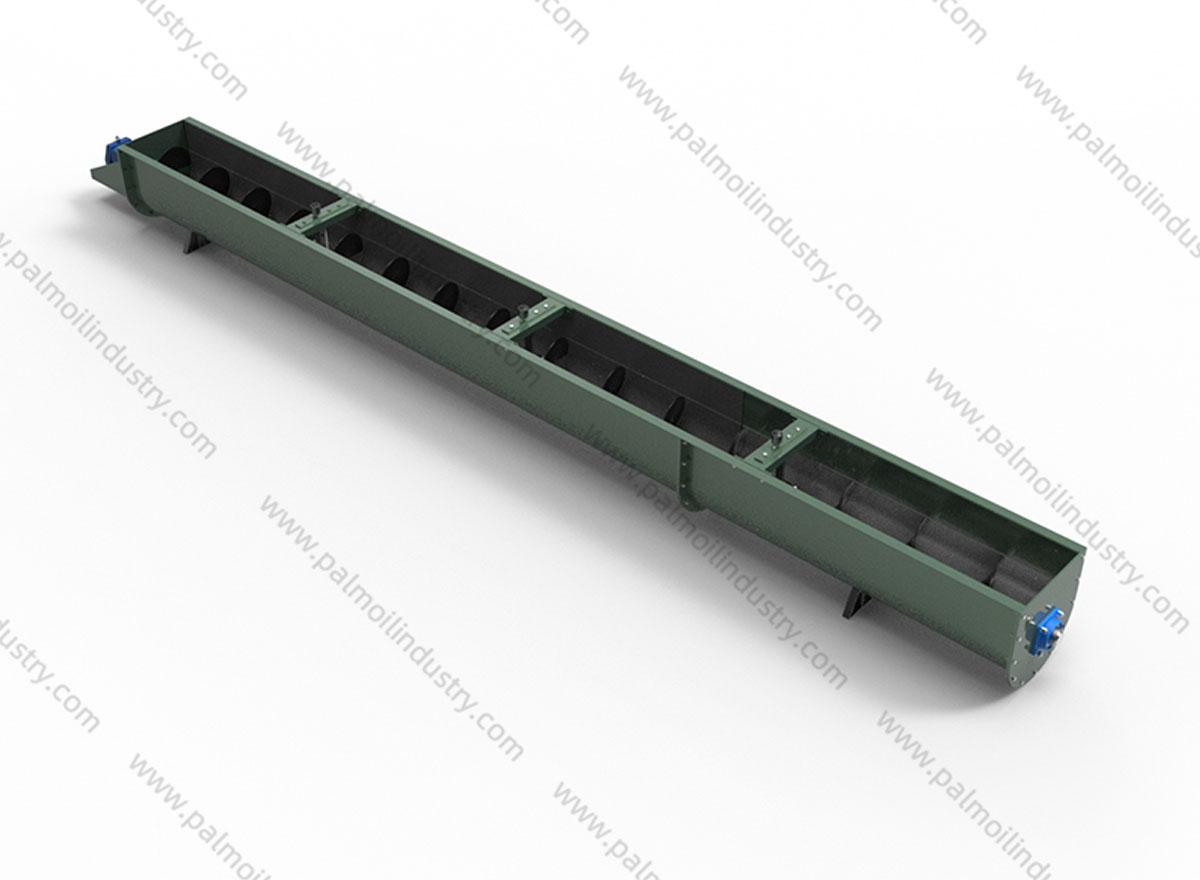

Screw Conveyor

Screw Conveyor Function and Working Method

The Screw Conveyor operates through the rotation of a spiral blade, also known as a screw, which is housed within a trough. As the screw rotates, it creates a pushing force that moves the material forward along the trough. The rotational motion of the screw ensures that the material is transported efficiently and consistently. This method of material handling is particularly effective for moving materials that are difficult to transport using traditional belt conveyors, such as sticky or damp substances.

Screw Conveyor Material and Construction

The Screw Conveyor is constructed from either carbon steel or stainless steel (SS304), depending on the specific application and material requirements. Carbon steel provides robustness and durability for general-purpose applications, while stainless steel offers excellent corrosion resistance and hygiene, making it suitable for food-grade and chemical applications.

Screw Conveyor Key Features

• Function: Transport palm fruits, nuts, kernels, and other small-sized materials.

• Working Method: Material movement is driven by the rotation of a spiral blade.

• Material: Available in carbon steel or stainless steel (SS304).

• Size Diameter: Offered in various diameters, including 300 mm, 400 mm, 600 mm, 750 mm, and 900 mm, to accommodate different material flow rates and space requirements.

• Max Incline Angle: Can be installed at a maximum incline angle of 55°, allowing for flexible positioning and transportation of materials to elevated locations.

• Driver Model: Powered by a reducer motor connected to the main shaft using a coupling, ensuring efficient power transmission and smooth operation.

• Capacity: Designed to handle capacities ranging from 2 to 10 tons per hour, making it suitable for operations of various scales.

• Output Speed: Operates at an output speed of 45-56 rpm, providing consistent and controlled material flow.

• Power: Equipped with a motor rated at 1450 rpm, with power options ranging from 1.5 kW to 18.5 kW, operating at 380 V and 50 Hz. This ensures sufficient energy for reliable and high-performance material transportation.

Screw Conveyor Performance Advantages

• Efficient Material Handling: The spiral blade design ensures efficient and continuous transportation of materials, minimizing blockages and ensuring smooth operation.

• Durable Construction: The use of carbon steel and stainless steel materials ensures long-term reliability and resistance to wear and tear in harsh industrial environments.

• Flexible Installation: With a maximum incline angle of 55°, the Screw Conveyor can be installed in various orientations to suit different processing layouts and space constraints.

• Easy Maintenance: The simple and robust design makes it easy to access and maintain critical components, reducing downtime and operational costs.

• Versatile Applications: Suitable for transporting a wide range of materials, from dry to semi-moist, making it a versatile addition to any processing facility.

Screw Conveyor Applications

The Screw Conveyor is widely used in palm oil mills and processing plants for transporting palm fruits, nuts, kernels, and other by-products. It is typically installed between different processing stages, such as from the sterilization tank to the threshing machine, or from the kernel separation stage to the drying unit. Additionally, it finds applications in other industries for transporting grains, seeds, chemicals, and various bulk materials. Its design and specifications make it suitable for integration into both new and existing processing facilities, enhancing their overall efficiency and productivity.
