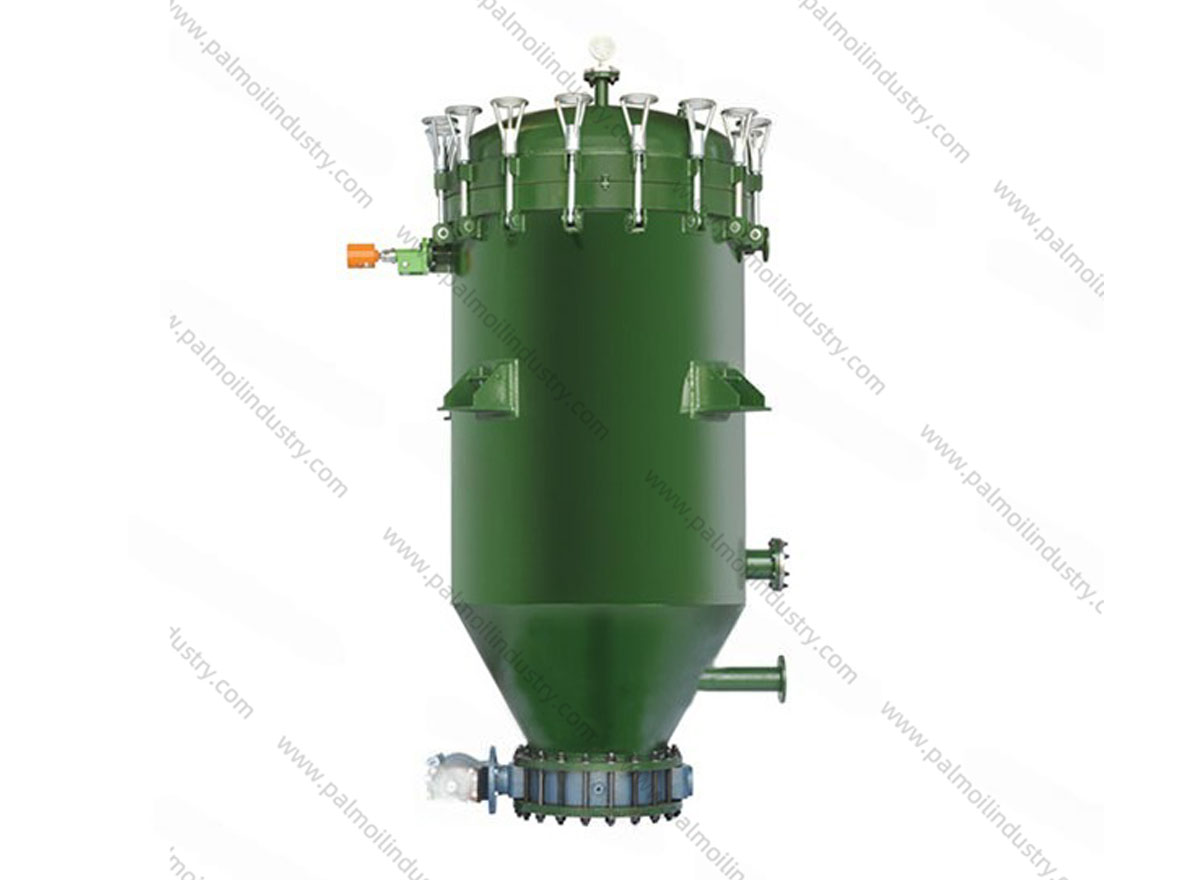

Pressure Leaf Filter

Pressure Leaf Filter Function and Working Method

The Pressure Leaf Filter operates through a straightforward workflow: Feed → Filter → Discharge. The feed material, containing a mixture of solids and liquids, is pumped into the filter tank. Inside the tank, the mixture passes through filter blades, which capture the solid particles while allowing the liquid to pass through. The filtered liquid is collected and discharged, while the solid residues (slag) are removed through vibration or centrifugation. This method ensures efficient separation of solids and liquids, producing clarified liquid and concentrated solid waste.

Pressure Leaf Filter Material and Construction

The Pressure Leaf Filter is constructed from either carbon steel or stainless steel 304, depending on the specific application and material compatibility requirements. Carbon steel provides robustness and durability for general-purpose applications, while stainless steel 304 is used in scenarios where corrosion resistance and hygiene are critical, such as in the final stages of oil refining.

Pressure Leaf Filter Key Features

• Type: Available in vertical and horizontal configurations to accommodate different space requirements and process layouts.

• Workflow: Consists of three main stages: Feed, Filter, and Discharge, ensuring a systematic and efficient filtration process.

• Components: The filter comprises a tank body, filter blades, pipes, and valves, all designed to work together seamlessly for optimal performance.

• Slag Discharge Method: Utilizes vibration or centrifugation to effectively remove solid residues from the filter blades, ensuring minimal downtime for cleaning and maintaining filtration efficiency.

• Filter Area: Offers a filter area ranging from 20 ㎡ to 60 ㎡ , allowing for high - capacity filtration suitable for various production scales.

• Work Pressure: Designed to operate at a working pressure of 5 kg/cm³, ensuring efficient filtration under controlled conditions.

• Production Capacity: Capable of processing 1 - 8 tons per hour, making it suitable for both small - scale and large - scale palm oil processing operations.

• Power: Equipped with a squirrel cage motor rated at 1450 rpm, 380 V, and 50 Hz, providing reliable and energy - efficient power for the filtration process.

Pressure Leaf Filter Performance Advantages

• Efficient Filtration: The large filter area and optimized workflow ensure high - efficiency separation of solids and liquids, producing clarified liquid with minimal residual solids.

• Durable Construction: The use of carbon steel and stainless steel 304 materials ensures long - term reliability and resistance to wear and tear in harsh industrial environments.

• Stable Operation: The robust design and stable pressure system ensure consistent filtration performance, even during continuous operation.

• Easy Maintenance: The vibration or centrifugation slag discharge method simplifies the cleaning process, reducing maintenance time and effort. The modular design of the filter blades also facilitates quick replacement or repair.

• Flexible Configuration: The availability of vertical and horizontal types allows for flexible installation in various processing facilities, maximizing space utilization and operational efficiency.

• Energy - Efficient Operation: The squirrel cage motor is designed for energy - efficient performance, minimizing power consumption while maintaining high - capacity filtration.

Pressure Leaf Filter Applications

The Pressure Leaf Filter is widely used in palm oil mills and processing plants for filtering oil residue in palm kernel oil and decolorized clay in oil refining processes. Its versatile design and efficient operation make it suitable for integration into both new and existing palm oil processing facilities. Additionally, the filter can be adapted for use in other industries requiring similar solid - liquid separation processes, such as food processing, chemical manufacturing, and more.
