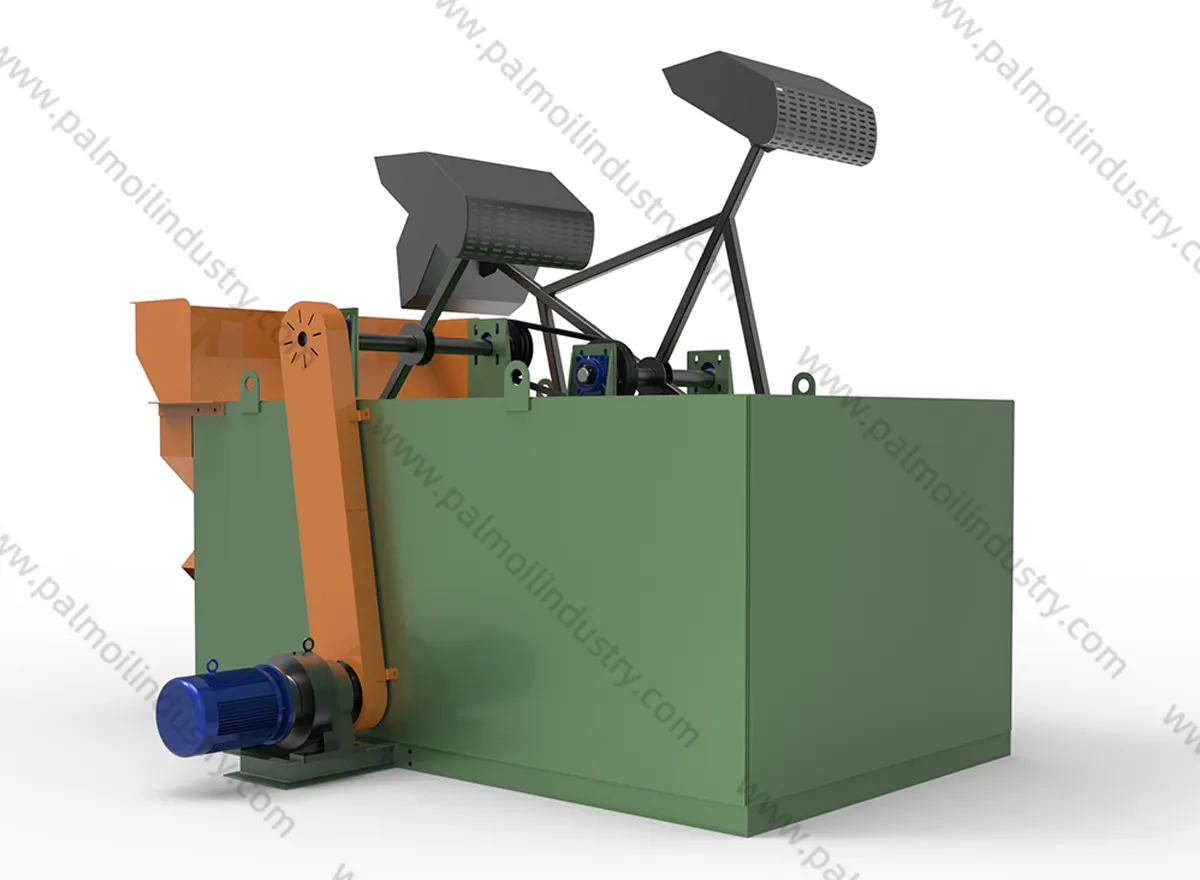

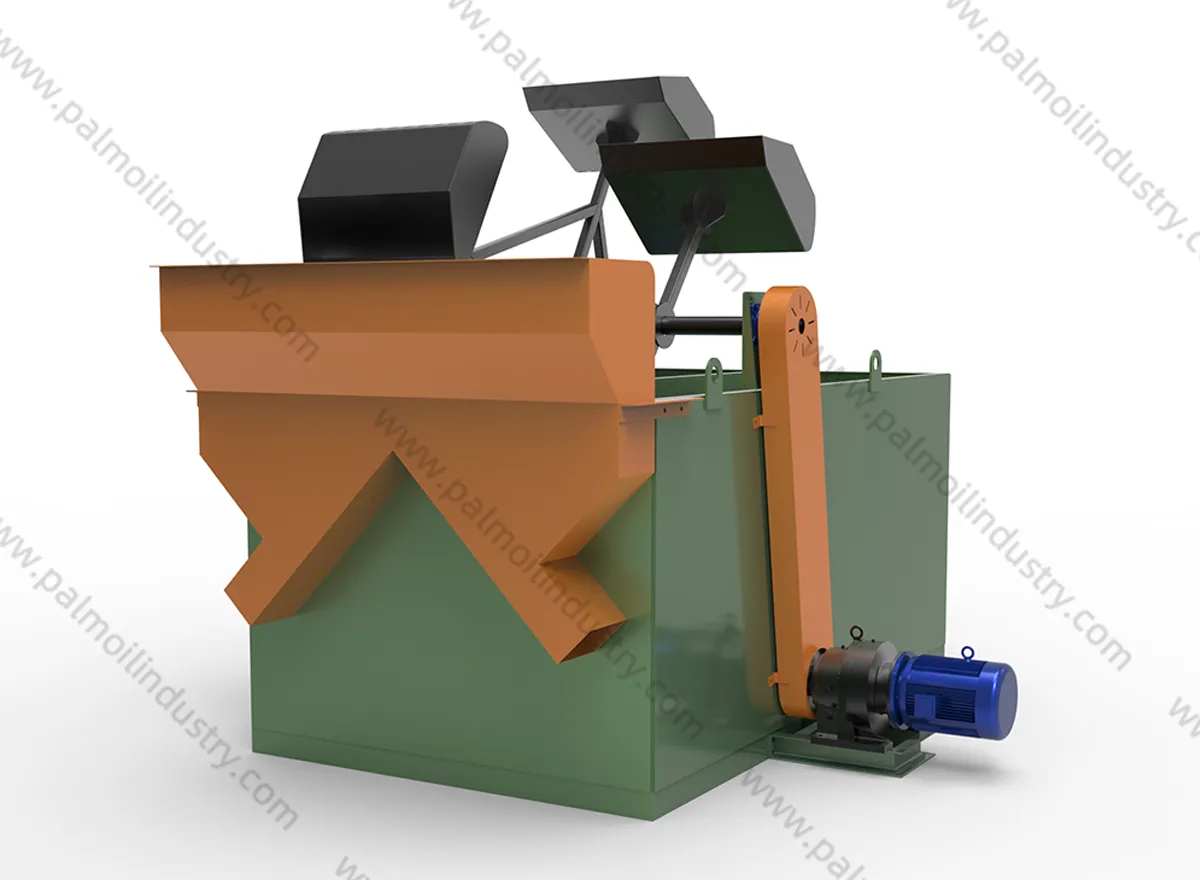

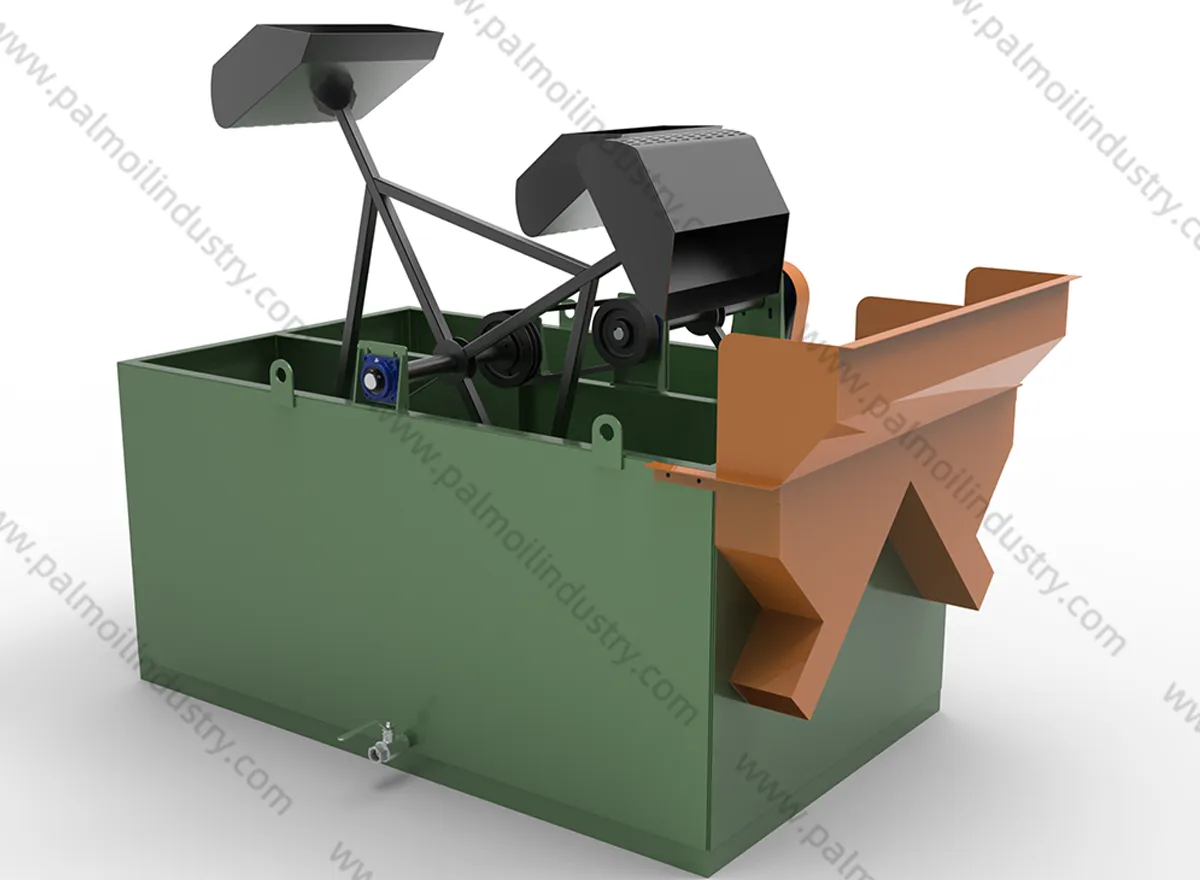

Palm Shell & Kernel Caly Bath Seperator

Get a Quote

Palm Shell & Kernel Caly Bath Seperator Specification

Equipment NamePalm Shell & Kernel calybath seperator
FunctionSedimentation and separation of palm kernel
shells in solution based on their different specific
gravities
Working modeDrum sedimentation filtration
MaterialCarbon steel
DimensionsYH-SCFLJ2515 & YHSCFLJ1510
Weight780kg-1300kg
Transmission modeMotor, reducer, pulley
Yield0.5-1.5 tons/hour nut(crushed)
Raw material moisture25-42%
PowerMotor 1450 rpm 1.5-2.2kW 380V 50Hz
Speed11-15 rpm
Dimention Size1700mm×1200mm×2200mm &
2600mm×1700mm×2500mm
