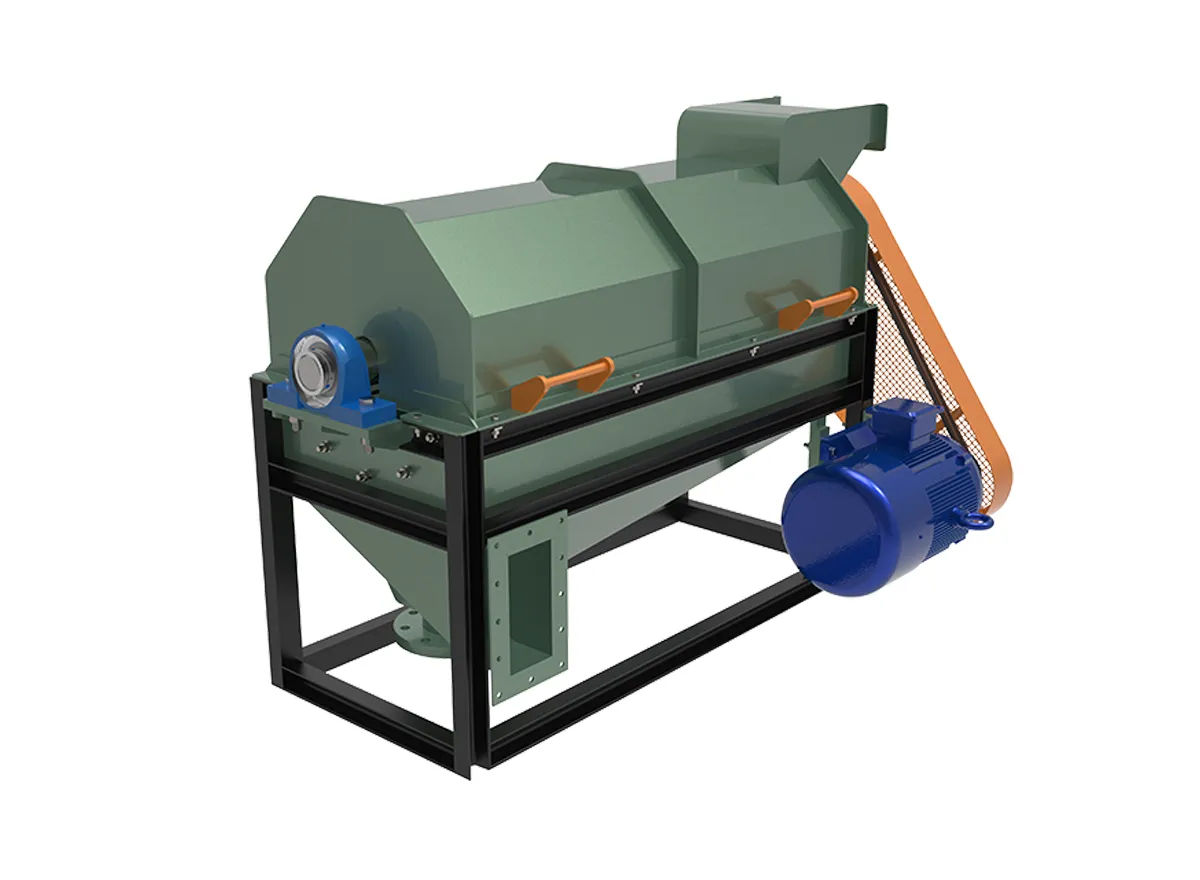

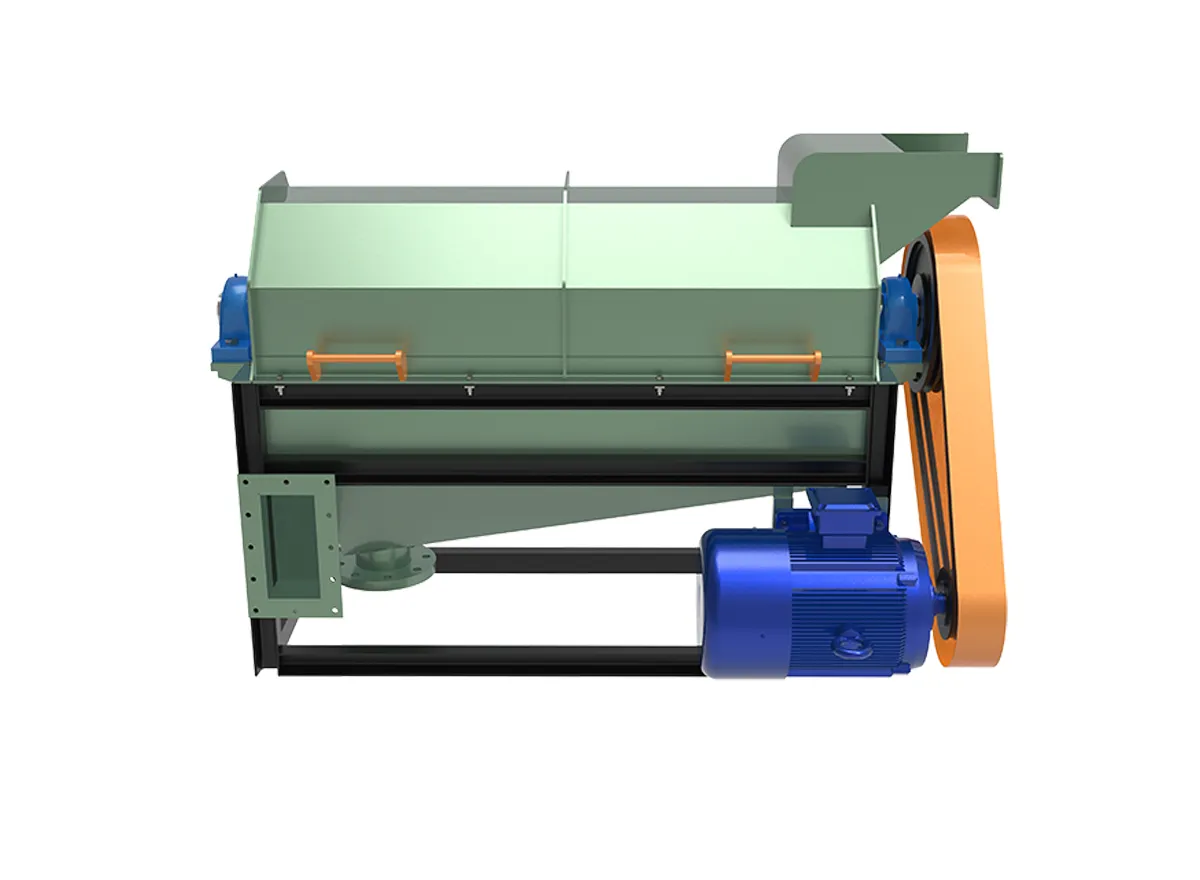

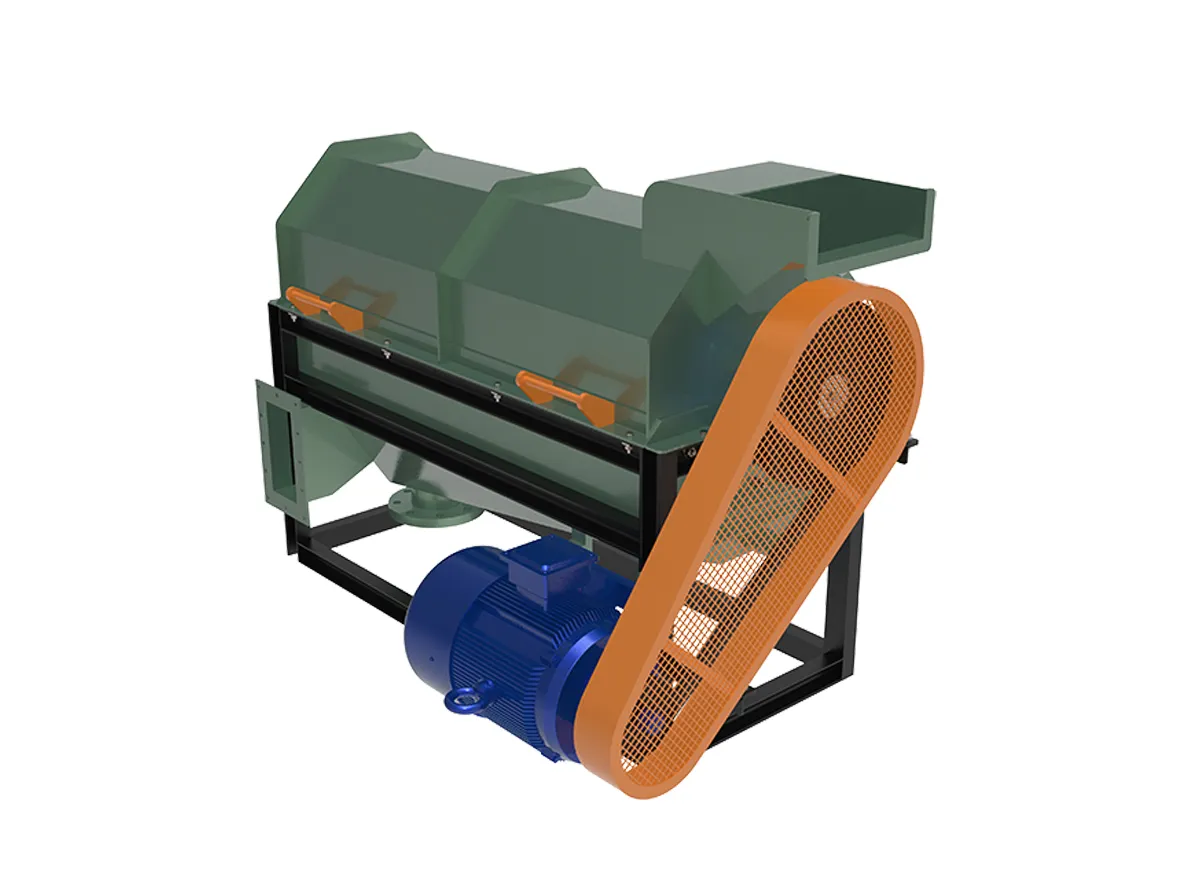

Palm Nut Splitter

Get a Quote 

Palm Nut Splitter Specification

Equipment Name		Palm nut Splitter
Function		Splitte the nut from fruit
Raw material condition		Palm Fruit （after cooking）
Process		Tap and polishing
Regulate		Rotational speed
Speciality		1. The Shaft is made of seamless pipe and solid shaft (aisi4140) 2. Cage adopts Flat noddles type use round bar 3. Hammer Material is wear-resistant (NM400) and multiple uses 4. The sterilized palm fruit is separated, and the fruit pulp is directly entered into the pressing machine. After the core is polished, the surface fiber is removed, and there is no need to separate the fiber, and it can directly enter the nuclear crushing section! Reduced process and oil loss!

Item		Model
Item		YHNS-3	YHNS-5
Capacity FFB ton/hr		3	5
Power kw 380V/3P/50Hz		5.5	7.5
Shaft Speed rpm/min		280-300	280-300
Cage Diameter mm:		450	600
After process Broken rate %		99.5%	99.5%
Driver connect Model		Pulley+V-belt	Pulley+V-belt
Dimension	L（mm）	1400	1700
	W（mm）	820	1000
	H（mm）	910	1110
Weight	kg	263	380
