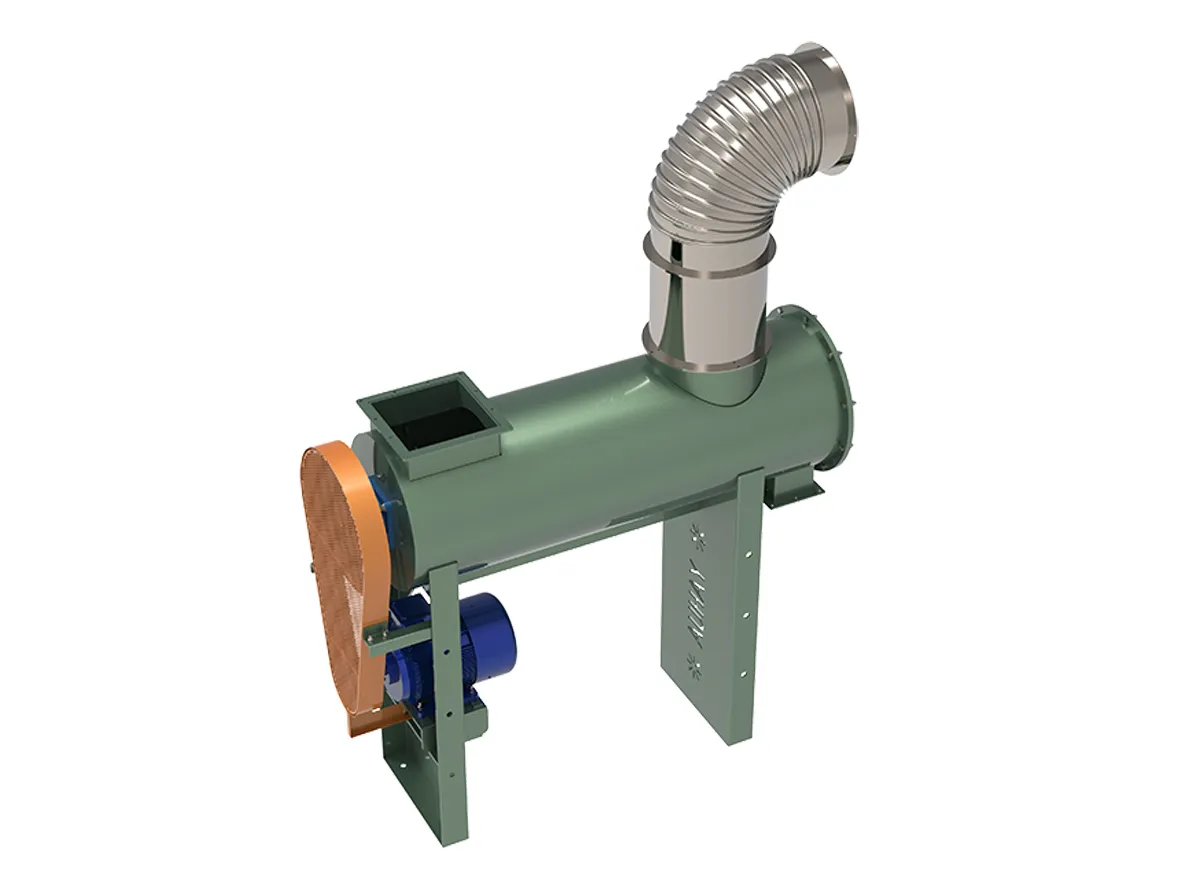

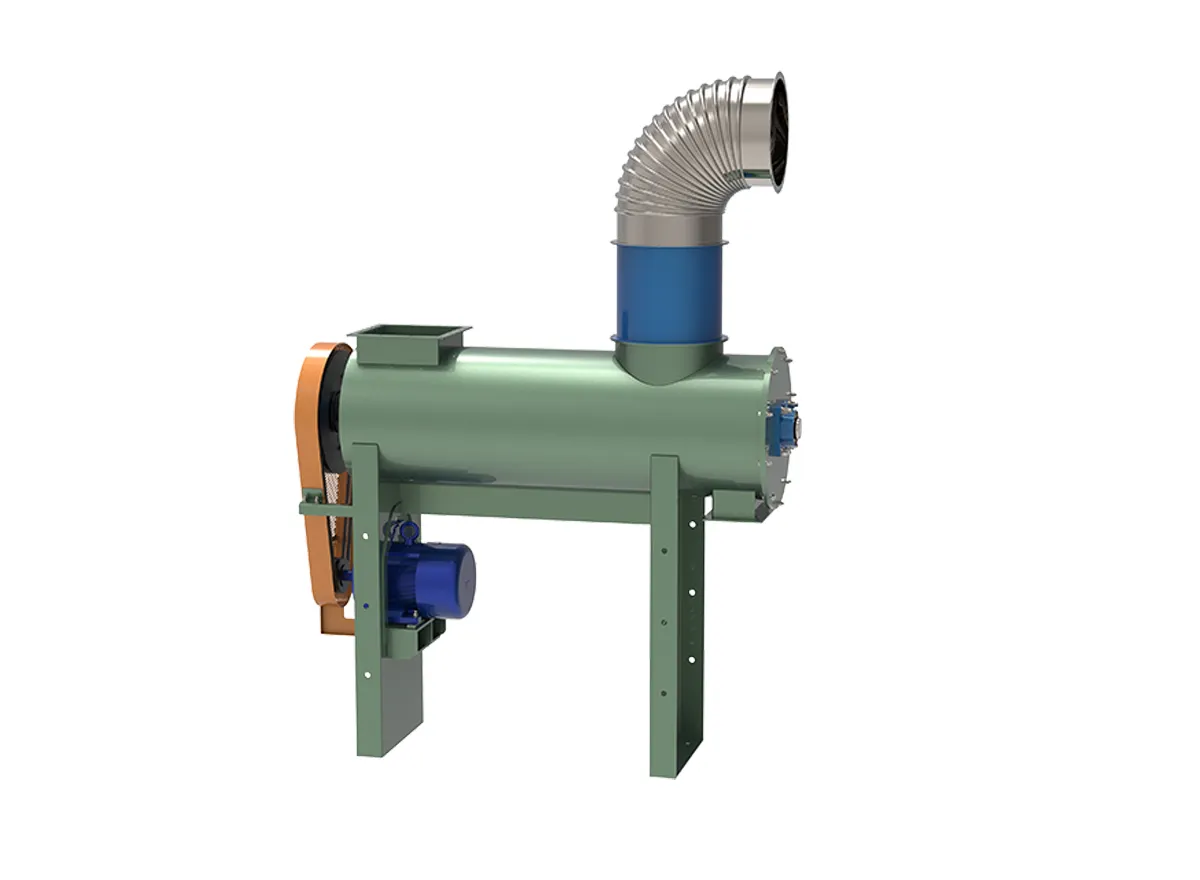

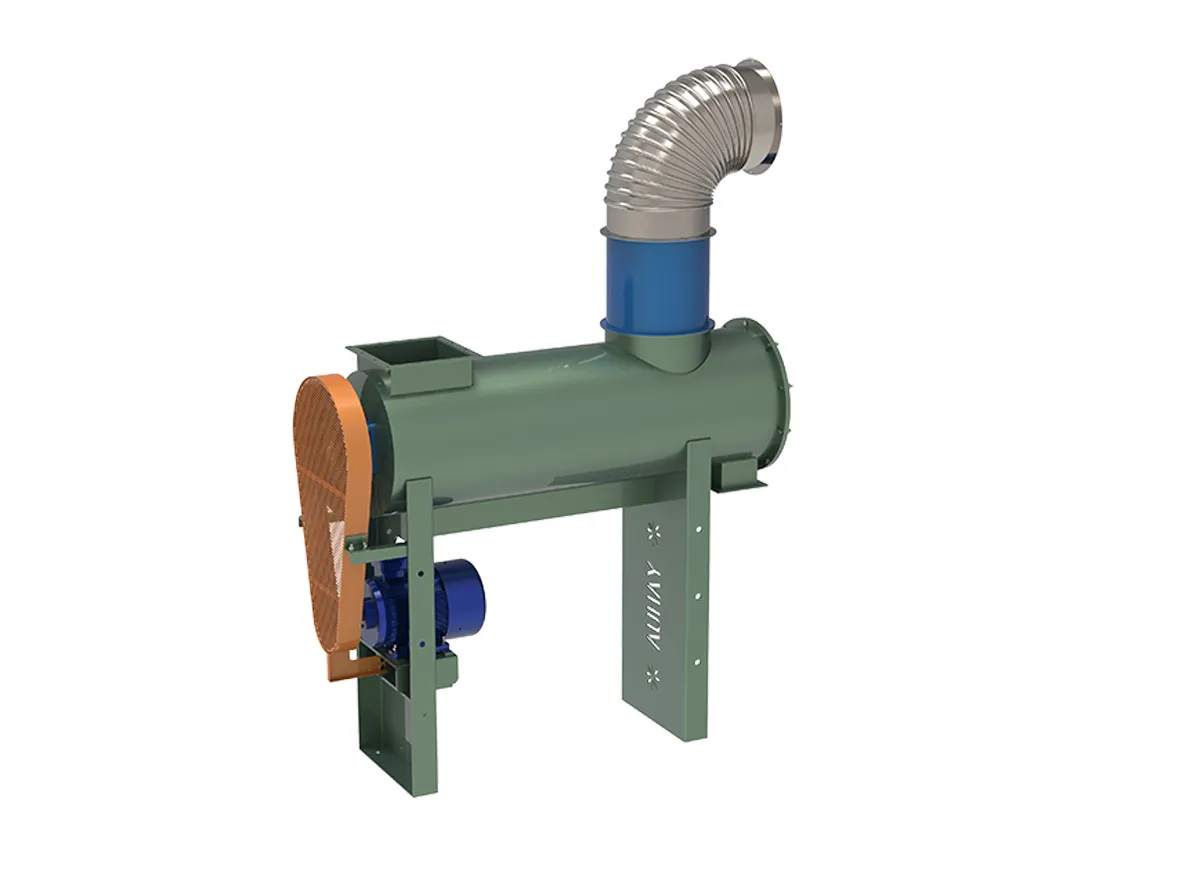

Palm Nut Fiber Polising Separator

Get a Quote 

Palm Nut Fiber Polising Separator Specification

Equipment Name		Palm nut fiber polising separator
Function		Polishing palm nut and separator fallen fiber
Raw material condition		Palm Nut with fiber
Process		Centrifugal Brushing and pneumatic separation
Regulate		Rotational speed
Speciality		1. The Shaft is made of seamless pipe and solid shaft(AISI4140) 2. Cage adopts Flat noddles type use round bar 3. Hammer Material is wear-resistant (NM400) and multiple uses 4. Hammer has a long span of 800 hours 5. The surface of the palm core is adhered to the partial fibers, and the fiber and the core are separated by high-speed rotation. This machine has the function of nut polishing, fiber separation 2 in 1! Strong practicality, low energy consumption, high efficiency!

Item		Model
Item		YHNPS-1	YHNPS-2
Capacity FFB ton/hr		1	2
Power kw 380V/3P/50Hz		4.0	5.5
Shaft Speed rpm/min		300-350	300-350
Cage Diameter mm:		500	750
After process Fiber remain %		≤5	≤5
Driver connect Model		Speed reducer+coupling	Speed reducer+coupling
Dimension	L（mm）	1750	1750
	W（mm）	550	800
	H（mm）	1200	1500
Weight	kg	355	510
