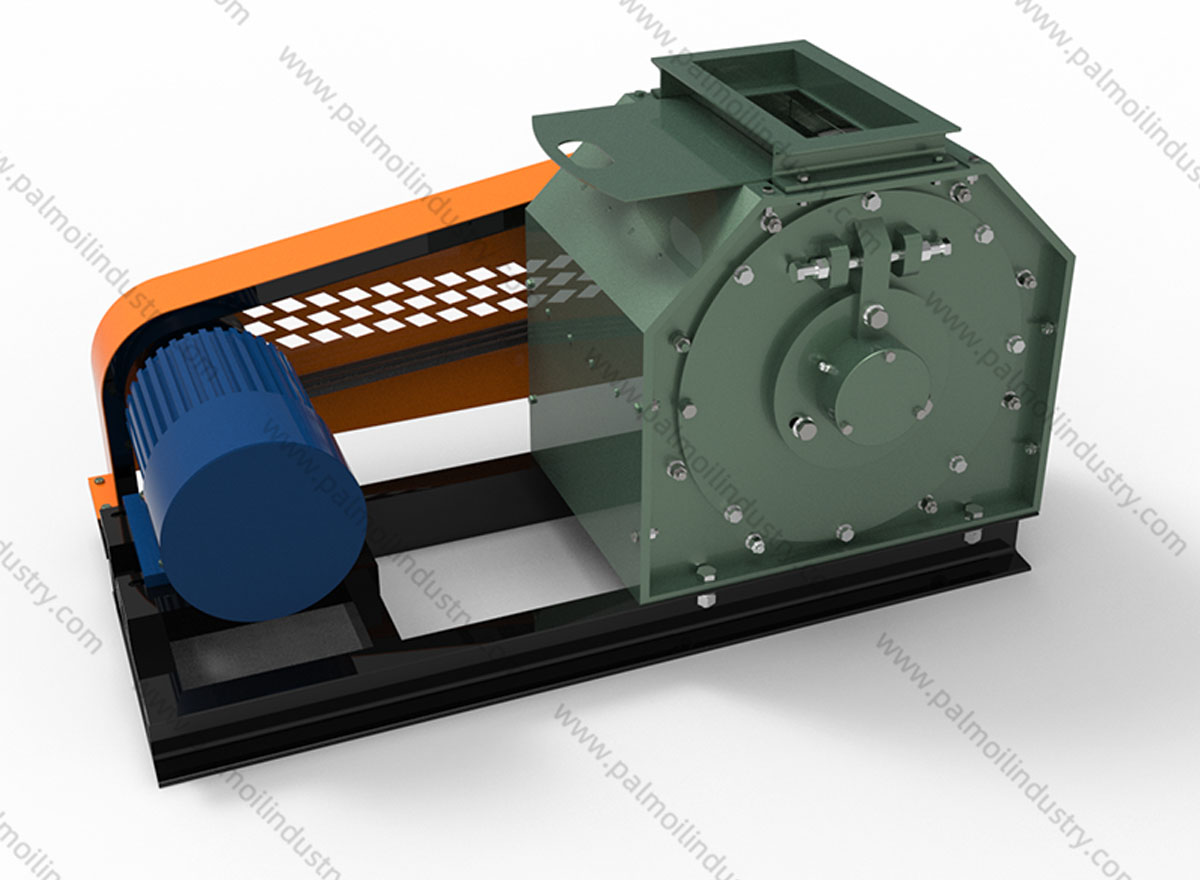

Palm Nut Crusher(Ripple Mill)

Palm Nut Crusher(Ripple Mill) Function and Working Method

The Nut Crusher operates by utilizing a series of round bars arranged in a specific pattern within the mill. Palm nuts are fed into the crusher, where they are subjected to mechanical crushing action between rotating and stationary round bars. The crushing action breaks the nuts into smaller pieces, effectively separating the shell from the kernel. The design of the round bars and the controlled gap between them ensure that the nuts are crushed to the desired size, allowing for efficient separation of the shell and kernel.

Palm Nut Crusher(Ripple Mill) Material and Construction

Constructed from carbon steel, the Nut Crusher combines strength and durability. Carbon steel is chosen for its excellent mechanical properties, including high tensile strength and wear resistance, making it ideal for withstanding the rigorous crushing process and continuous operation in a palm oil mill environment.

Palm Nut Crusher(Ripple Mill) Key Features

• Function: Crush palm nuts into shell and kernel components.

• Material: Carbon steel.

• Size Diameter: Available in 400 mm, 500 mm, and 600 mm to accommodate different production capacities and space requirements.

• Driver Model: Powered by a motor connected to the main shaft via a belt wheel and belt system, ensuring efficient power transmission and smooth operation.

• Capacity: Offered in capacities of 4 tons, 6 tons, and 8 tons per hour to handle varying processing volumes.

• Output Speed: Operates at an output speed of 1450 rpm, ensuring efficient crushing action and high - throughput performance.

• Power: Equipped with a motor rated at 1450 rpm, with power options of 5.5 kW, 7.5 kW, and 11 kW, operating at 380 V and 50 Hz. This provides sufficient energy for reliable and high - performance crushing.

• Round Bar Size: Features round bars with sizes of 20 mm and 25 mm, allowing for adjustment of the crushing intensity based on the desired particle size of the output.

Palm Nut Crusher(Ripple Mill) Performance Advantages

• Efficient Crushing: The Nut Crusher effectively breaks down palm nuts into shell and kernel, ensuring high - efficiency separation and preparing the kernel for further processing.

• Durable Construction: The carbon steel build ensures long - term reliability and minimal maintenance requirements, even under continuous and demanding operating conditions.

• Flexible Capacity: Multiple size and capacity options make the Nut Crusher suitable for operations of various scales, from small to large - scale palm oil processing facilities.

• Adjustable Crushing Intensity: The availability of different round bar sizes allows for adjustment of the crushing intensity, enabling operators to achieve the desired particle size and separation efficiency.

• Energy - Efficient Operation: The motor and drive system are designed to minimize energy consumption while maintaining high - performance crushing action.

Palm Nut Crusher(Ripple Mill) Applications

The Nut Crusher is an essential component in palm oil mills and processing plants. It is typically installed after the palm fruit has been processed to extract crude palm oil, and the residual nuts need to be separated into shell and kernel. By efficiently crushing the nuts, the Nut Crusher prepares the kernel for further processing, such as oil extraction, and the shell for use as biomass fuel or other applications. Its design and specifications make it suitable for integration into both new and existing palm oil processing facilities, enhancing their overall efficiency and productivity.
