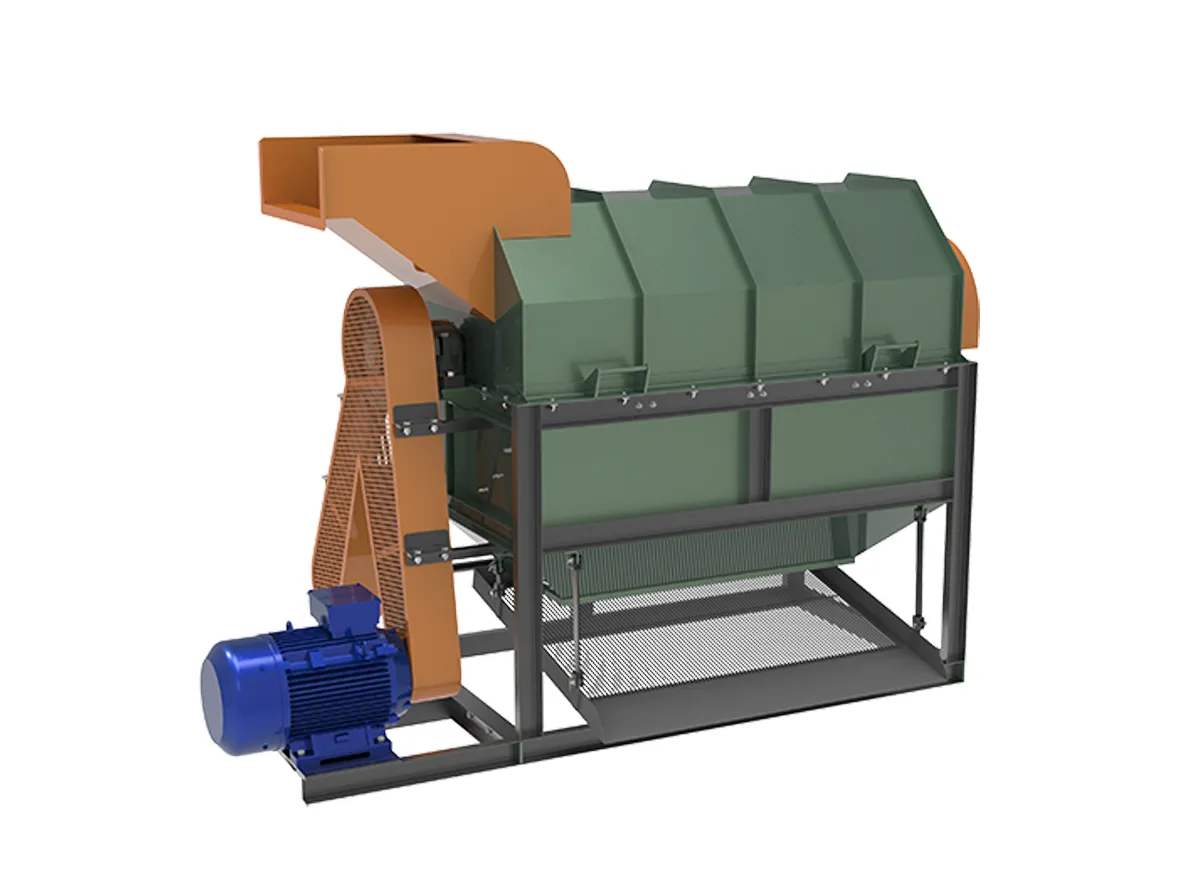

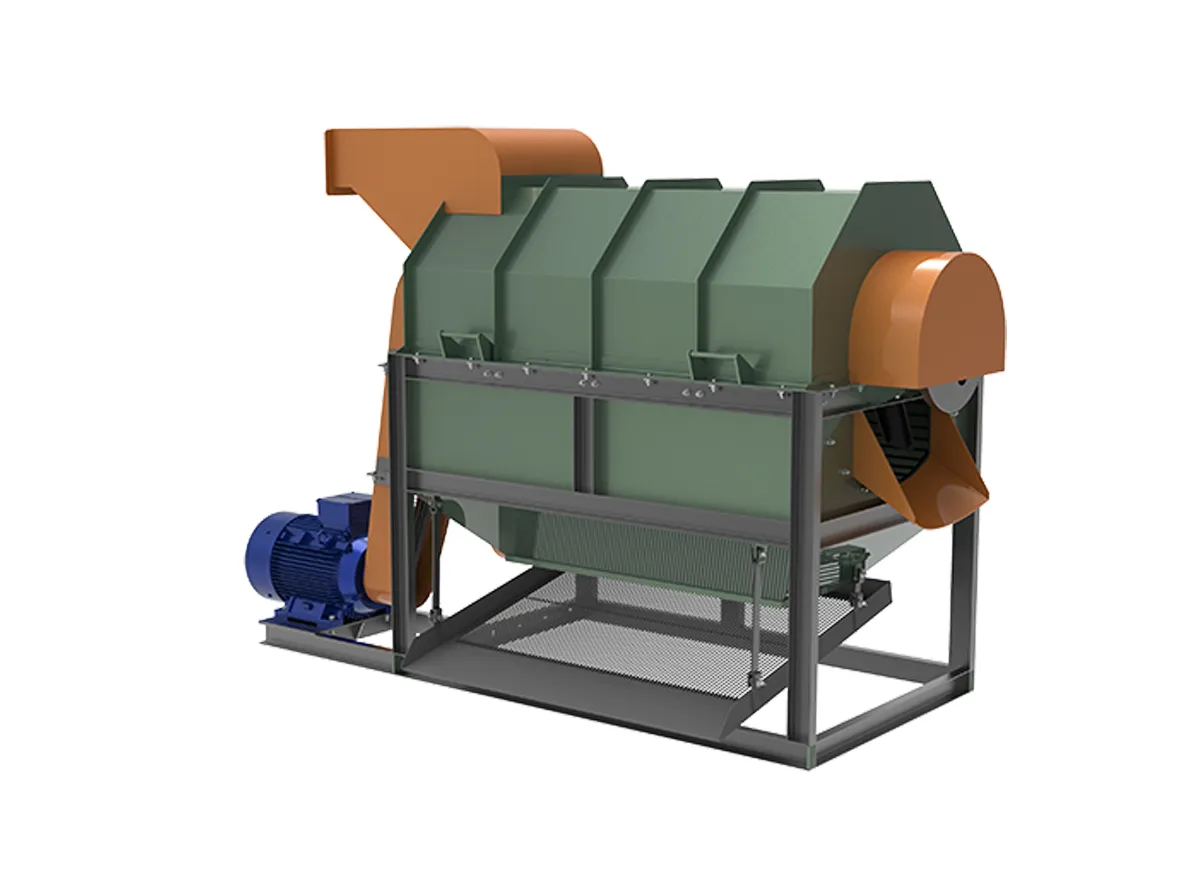

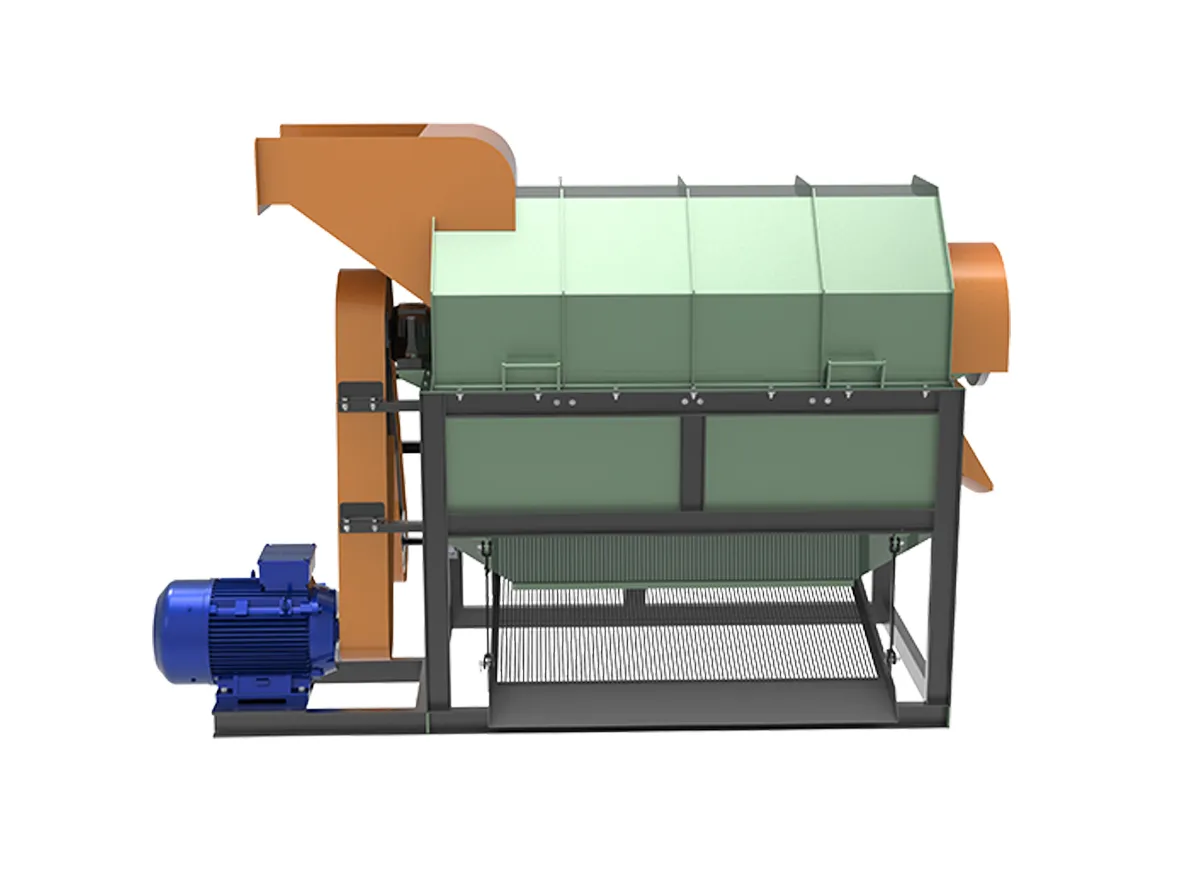

Palm Fruit Splitter

Get a Quote 

Palm Fruit Splitter Specification

Equipment Name		Palm Fruit Splitter
Function		Splitte the fruit from fruit bunch
Raw material condition		Palm Fresh Fruit Bunch
Process		Centrifugal beating and Separate
Regulate		Rotational speed
Speciality		1. The Shaft is made of seamless pipe and solid shaft (aisi4140) 2. Cage adopts Flat noddles type use round bar 3. Hammer Material is wear-resistant (NM400) and multiple uses 4. Hammer has a long span of 800 hours 5. Slap the palm fresh fruit directly into the centrifugation, so that the fruit grains will fall off from the fruit string! Make the subsequent processing of fruit grains easier, reduce steam consumption, and reduce equipment investment! The empty fruit string does not participate in the follow-up sterilization and defruit removal sections!

Item		Model
Item		YHSP-6	YHEP-10
Capacity FFB ton/hr		6	10
Power kw 380V/3P/50Hz		15	22
Shaft Speed rpm/min		280-300	280-300
Cage Diameter mm:		1200	1500
After process Fruit remain %		0-2%	0-2%
Driver connect Model		Pulley+V-belt	Pulley+V-belt
Dimension	L（mm）	2960	3260
	W（mm）	1330	1680
	H（mm）	2100	2550
Weight	kg	1500	2200
