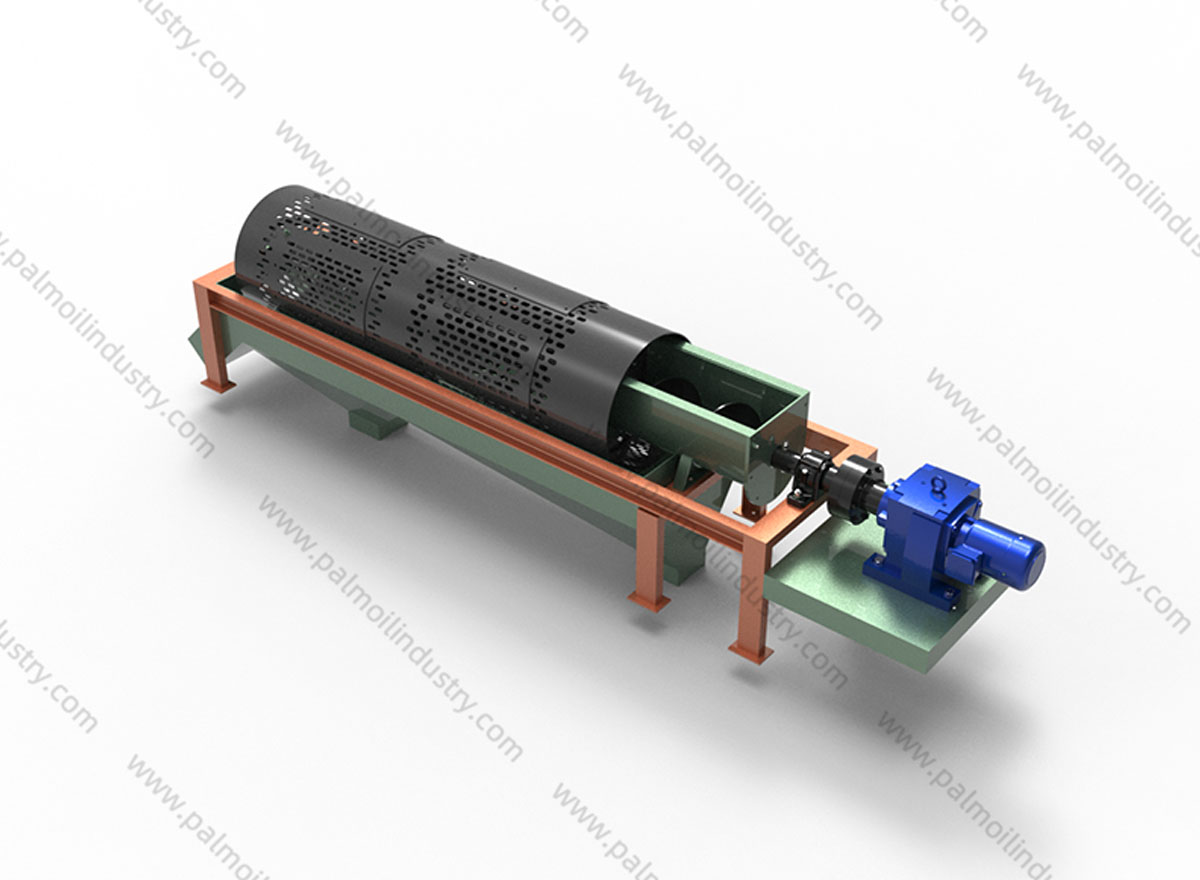

Nut Grading Screen

Nut Grading Screen Function and Working Method

The Nut Grading Screen operates by utilizing a vibrating screen mechanism. The kernels are fed onto the screen, which vibrates at a specific frequency and amplitude. The vibrations cause the kernels to separate and move across the screen surface. The screen is equipped with different mesh sizes, allowing kernels of varying particle sizes to be sorted and collected in separate compartments. This process ensures that kernels are graded accurately, which is essential for optimizing the efficiency of subsequent processing steps such as crushing and oil extraction.

Nut Grading Screen Material and Construction

Constructed from carbon steel, the Nut Grading Screen combines strength and durability. Carbon steel is chosen for its excellent mechanical properties, including high tensile strength and wear resistance, making it ideal for withstanding the rigorous use and material flow typical in a palm oil mill environment.

Nut Grading Screen Key Features

• Size: The screen has dimensions of 915 mm, providing sufficient screening area for effective kernel grading.

• Driver Model: The grading screen is driven by a motor coupled to a gear reducer, with the output connected to the main shaft by a coupling. This ensures efficient power transmission and smooth operation of the vibrating mechanism.

• Capacity: Designed to handle a capacity of 7 tons per hour, making it suitable for medium-scale palm oil processing operations.

• Power: Equipped with a motor rated at 1450 rpm, 5.5 kW, 380 V, and 50 Hz, providing sufficient energy for reliable and high-performance screening.

• Rotational Speed: Operates at a rotational speed of 24 rpm, ensuring effective vibration and kernel movement across the screen surface.

Nut Grading Screen Performance Advantages

• Efficient Grading: The vibrating screen mechanism ensures thorough and accurate separation of kernels based on particle size, improving the efficiency of subsequent processing steps.

• Durable Construction: The carbon steel build ensures long-term reliability and minimal maintenance requirements, even under continuous and demanding operating conditions.

• High-Capacity Operation: With a capacity of 7 tons per hour, the Nut Grading Screen can keep up with the processing demands of palm oil mills, ensuring efficient workflow and high productivity.

• Energy-Efficient Operation: The motor and drive system are designed to minimize energy consumption while maintaining high-performance screening action.

• Precision Screening: The screen's mesh sizes are carefully selected to ensure precise grading of kernels, allowing for optimal processing conditions in downstream equipment.

Nut Grading Screen Applications

The Nut Grading Screen is widely used in palm oil mills and processing plants. It is typically installed after the nut polishing and before the kernel crushing stages. By efficiently grading the kernels according to particle size, the Nut Grading Screen ensures that each subsequent processing step can be optimized for the specific size fraction of kernels, enhancing the overall efficiency and yield of the palm oil production process. Its design and specifications make it suitable for integration into both new and existing palm oil processing facilities, contributing to the production of high-quality palm kernel oil.
