Membrane Press Filter

Membrane Press Filter Function and Working Method

The Membrane Press Filter operates through a systematic workflow: Feed → Filter → Discharge. The feed material, containing a mixture of solids and liquids, is pumped into the filter by a diaphragm pump. Inside the filter, the mixture is subjected to high - pressure hydraulic pressing, which forces the liquid through the membrane while retaining the solids. The filtered liquid is collected and discharged, while the solid residues are removed by gravity. This method ensures efficient separation of solids and liquids, producing clarified liquid and concentrated solid waste.

Membrane Press Filter Material and Construction

The Membrane Press Filter is constructed from either carbon steel or stainless steel 304. Carbon steel provides robustness and durability for general - purpose applications, while stainless steel 304 is used in scenarios where corrosion resistance and hygiene are critical, such as in the final stages of oil refining and processing.

Membrane Press Filter Key Features

• Pressing Method: Hydraulic pressing ensures high - pressure filtration for efficient solid - liquid separation.

• Compression Pressure: Capable of achieving a compression pressure of ≥20 MPa, ensuring thorough filtration and maximum recovery of liquid.

• Workflow: Consists of three main stages: Feed, Filter, and Discharge, ensuring a systematic and efficient filtration process.

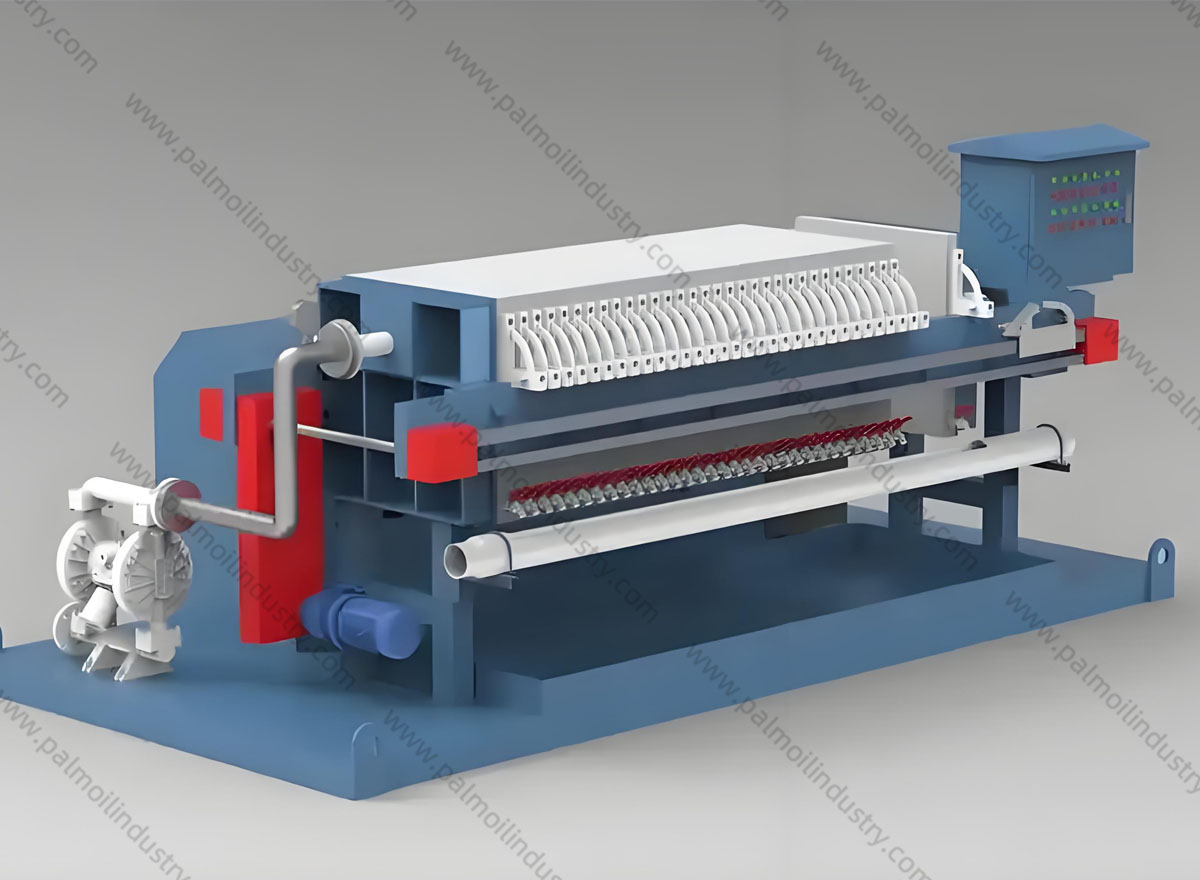

• Components: The filter comprises a sturdy structure, filter frame, diaphragm pump, pipes, and valves, all designed to work together seamlessly for optimal performance.

• Slag Discharge Method: Utilizes gravity to remove solid residues from the filter, ensuring minimal downtime for cleaning and maintaining filtration efficiency.

• Filter Area: Offers a filter area ranging from 20 m² to 60 m², allowing for high - capacity filtration suitable for various production scales.

• Work Pressure: Designed to operate at a working pressure of 6 kg/cm³, ensuring efficient filtration under controlled conditions.

• Production Capacity: Capable of processing 1 - 8 tons per hour, making it suitable for both small - scale and large - scale palm oil processing operations.

• Feeding Pump: Equipped with a diaphragm pump with a flow rate of Q=5 - 50 m³ and a suitable head, ensuring efficient feeding of the filter with minimal pulsation and maximum reliability.

Membrane Press Filter Performance Advantages

• Efficient Filtration: The high - pressure hydraulic pressing and large filter area ensure high - efficiency separation of solids and liquids, producing clarified liquid with minimal residual solids.

• Durable Construction: The use of carbon steel and stainless steel 304 materials ensures long - term reliability and resistance to wear and tear in harsh industrial environments.

• Stable Operation: The robust design and stable pressure system ensure consistent filtration performance, even during continuous operation.

• Easy Maintenance: The gravity slag discharge method simplifies the cleaning process, reducing maintenance time and effort. The modular design of the filter components also facilitates quick replacement or repair.

• Energy - Efficient Operation: The hydraulic pressing system and diaphragm pump are designed for energy - efficient performance, minimizing power consumption while maintaining high - capacity filtration.

• Flexible Configuration: The Membrane Press Filter can be customized to meet specific production requirements, with various filter area and capacity options available.

Membrane Press Filter Applications

The Membrane Press Filter is widely used in palm oil mills and processing plants for filtering and separating fractionated palm stearin oil from palm liquid oil. Its versatile design and efficient operation make it suitable for integration into both new and existing palm oil processing facilities. Additionally, the filter can be adapted for use in other industries requiring similar solid - liquid separation processes, such as food processing, chemical manufacturing, pharmaceuticals, and more.
