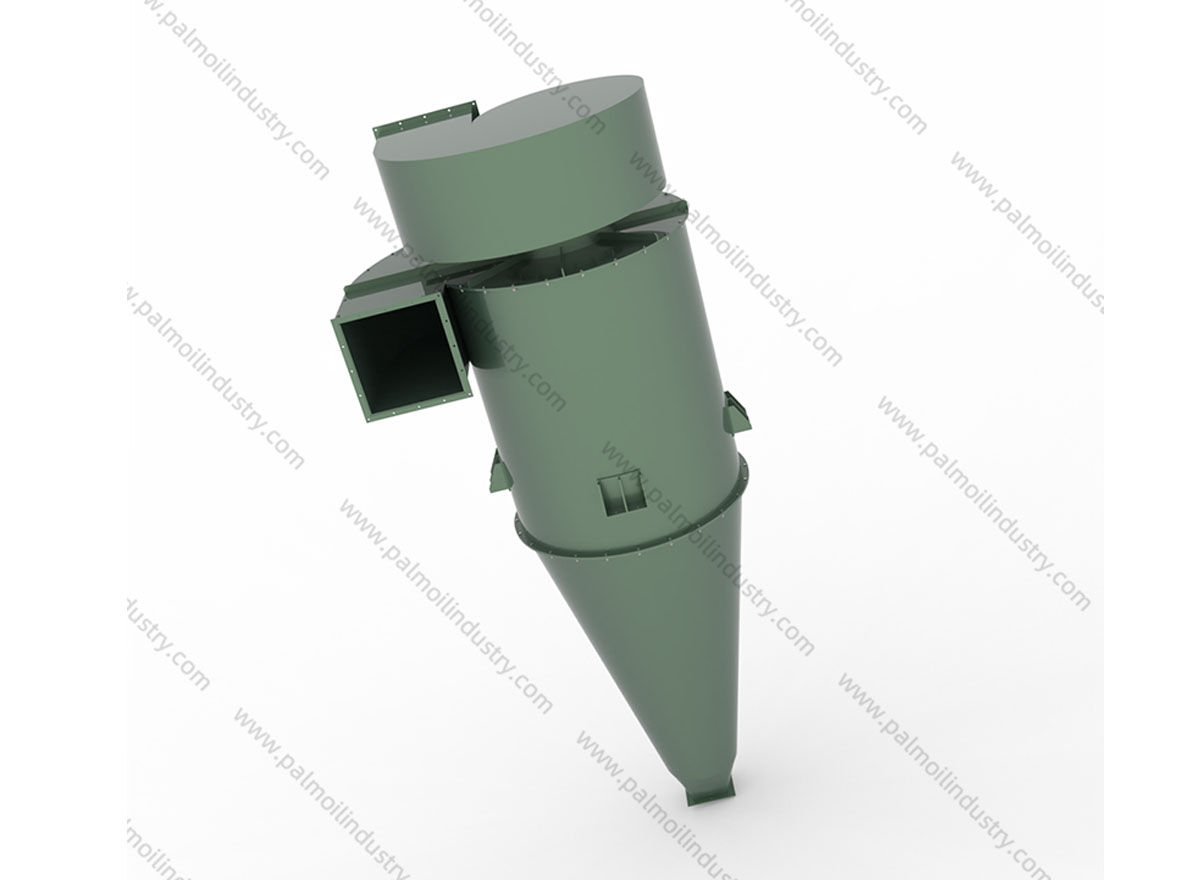

Fiber Cyclone

Fiber Cyclone Function and Working Method

The Fiber Cyclone operates using a combination of pneumatic and gravity principles. The system generates a high - velocity airflow that carries the mixture of fibers and nuts into the cyclone chamber. Inside the chamber, the airflow creates a centrifugal force that separates the heavier nuts from the lighter fibers. The nuts, being denser, are thrown to the outer walls of the cyclone and discharged through a separate outlet, while the lighter fibers are carried upwards by the airflow and discharged through a different outlet. This separation process ensures that the nuts are free from fibrous contaminants, improving the efficiency of downstream processing equipment.

Fiber Cyclone Material and Construction

Constructed from carbon steel, the Fiber Cyclone combines strength and durability. Carbon steel is chosen for its excellent mechanical properties, including high tensile strength and wear resistance, making it ideal for withstanding the rigorous conditions of continuous operation in a palm oil mill environment.

Fiber Cyclone Key Features

• Diameter: The cyclone has a diameter of 2300 mm, providing sufficient separation capacity for efficient fiber and nut separation.

• Volume/Pressure: Designed to handle an air volume of 40,000 m³/hr at a pressure of 370 mmWG, ensuring powerful airflow for effective separation.

• Fan Model: Equipped with a centrifugal fan, which is known for its high - efficiency air movement and ability to generate the required airflow and pressure for the separation process.

• Driver Model: The fan is driven by a motor connected directly to the main shaft, ensuring efficient power transmission and smooth operation.

• Capacity: Designed for a capacity of 10 tons per hour, making it suitable for medium - scale to large - scale palm oil processing operations.

• Fan Power: Powered by a motor rated at 1600 rpm, 55 kW, 380 V, and 50 Hz, providing the necessary energy to generate the required airflow.

• Air Lock Size: Features an air lock with a size of 800 mm, powered by a 7.5 kW motor operating at 380 V and 50 Hz, to control the flow of materials into the cyclone and maintain airtight conditions.

Fiber Cyclone Performance Advantages

• High - Efficiency Separation: The pneumatic and gravity method ensures thorough separation of fibers and nuts, producing a clean nut product suitable for further processing.

• Durable Construction: The carbon steel build ensures long - term reliability and minimal maintenance requirements, even under continuous and demanding operating conditions.

• High - Capacity Operation: With a capacity of 10 tons per hour, the Fiber Cyclone can keep up with the processing demands of palm oil mills, ensuring efficient workflow and high productivity.

• Energy - Efficient Operation: The fan and motor are designed to minimize energy consumption while maintaining high - performance separation.

• Robust Airflow Management: The centrifugal fan and high - volume airflow ensure effective transportation of materials and optimal separation efficiency.

• Automated Control: The system can be equipped with automated control systems to monitor and adjust separation parameters, ensuring consistent performance and product quality.

Fiber Cyclone Applications

The Fiber Cyclone is widely used in palm oil mills and processing plants. It is usually installed in the palm kernel processing stage after pressing stages to remove fibers of the nuts for further processing. The Fiber Cyclone design and specifications make it suitable for integration into both new and existing palm oil processing facilities, by effectively separating fibers from nuts,contributing to the production of high - quality palm oil and its derivatives.
