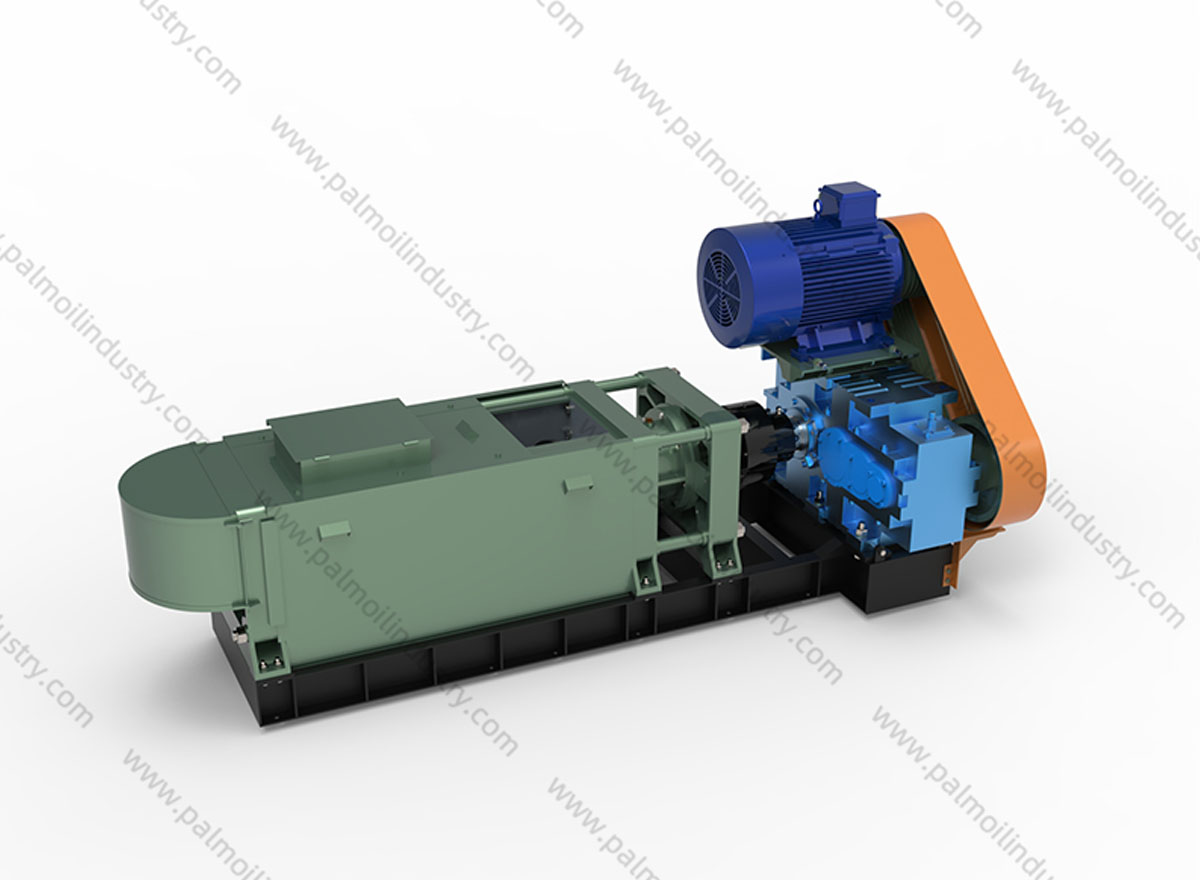

Empty Palm Fruit Bunches Press

Empty Palm Fruit Bunches Press Function and Working Mode

The Palm Empty Fruit Bunch Press operates by physically shredding the empty fruit bunches into smaller pieces. This mechanical breakdown increases the surface area, allowing for more effective extraction of residual water and oil. The shredded material is then subjected to pressing, which applies mechanical pressure to squeeze out the remaining liquids. The press is designed to handle the fibrous nature of empty fruit bunches, ensuring efficient processing and maximum recovery of residual oil and water.

Empty Palm Fruit Bunches Press Material and Construction

Constructed from carbon steel, the Palm Empty Fruit Bunch Press is built to withstand the demanding conditions of industrial palm oil processing. Carbon steel provides the necessary strength and durability to handle the abrasive and high - moisture content of empty fruit bunches, ensuring long - term reliable operation with minimal maintenance.

Empty Palm Fruit Bunches Press Key Features

• Dimensions: The machine has dimensions of 3600 mm × 1200 mm × 1500 mm, making it a substantial piece of equipment suitable for integration into palm oil mill layouts.

• Weight: Weighing 7500 kg, it is a heavy - duty machine designed to provide stable and powerful performance during continuous operation.

• Transmission Mode: The press utilizes a motor coupled to a gear reducer by a belt. The gear reducer output shaft is connected to the main shaft by a coupling, ensuring efficient power transmission and smooth mechanical pressing action.

• Yield: Capable of processing 12 - 15 tons of empty fruit skewers per hour, it offers high - throughput performance, keeping up with the demands of large - scale palm oil processing facilities.

• Raw Material Moisture: Designed to handle empty fruit bunches with a moisture content of 45 - 48%, ensuring effective pressing and liquid recovery without excessive mechanical wear.

• Power: Equipped with a powerful motor rated at 980 rpm, 75 kW, 380 V, and 50 Hz, providing sufficient energy for the intensive pressing process.

• Speed: Operates at a speed of 11 - 15 rpm, optimizing the pressing action for efficient liquid extraction while maintaining the integrity of the pressed material.

• Cake Size: The pressed residue, or cake, has a size range of 60 - 200 mm, ensuring that the pressed material is appropriately processed for further disposal or use as biomass.

Empty Palm Fruit Bunches Press Performance Advantages

• Efficient Resource Recovery: The press effectively squeezes out residual water and oil from empty fruit bunches, maximizing resource utilization and reducing waste in the palm oil processing chain.

• Robust Construction: The carbon steel build ensures the machine can handle the fibrous and moist empty fruit bunches without frequent breakdowns, providing consistent performance over time.

• High - Throughput Processing: With a processing capacity of 12 - 15 tons per hour, it is suitable for large - scale operations, helping palm oil mills efficiently manage their waste streams.

• Versatile Cake Output: The cake size of 60 - 200 mm makes the pressed residue suitable for various applications, such as biomass fuel or composting material.

Empty Palm Fruit Bunches Press Applications

The Palm Empty Fruit Bunch Press is an essential component in modern palm oil mills and processing plants. It is typically installed after the palm oil extraction process to handle the empty fruit bunches that remain after the fruit has been processed. By efficiently pressing these empty bunches, the machine helps mills reduce waste disposal costs and recover additional oil and water, contributing to a more sustainable and economically viable production process. Its design and specifications make it suitable for integration into both new palm oil processing facilities and existing mills looking to enhance their waste management and resource recovery capabilities.
