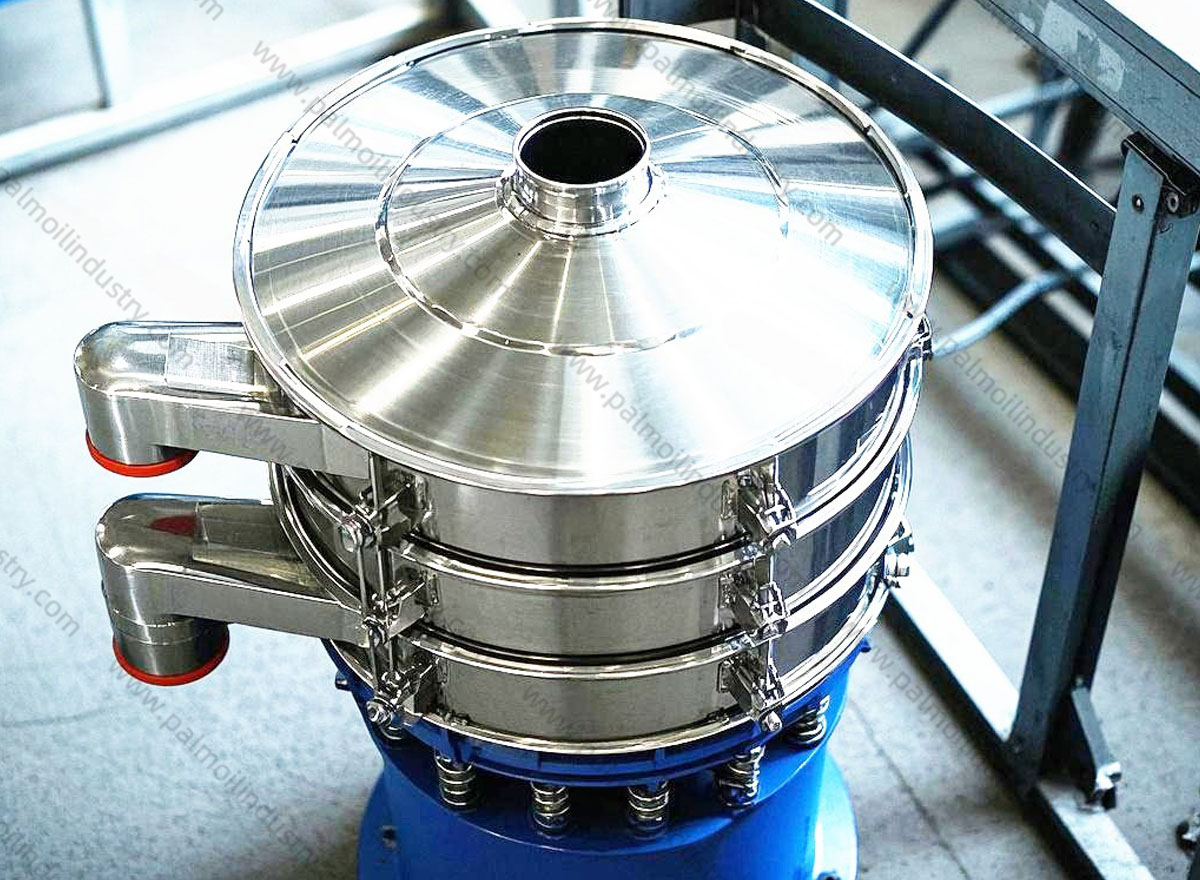

Double Deck Circular Vibrating Screen

Double Deck Circular Vibrating Screen Function and Working Method

The Double Deck Circular Vibrating Screen operates by utilizing two layers of mesh with different aperture sizes. The upper deck typically has a larger mesh size (20 mesh), while the lower deck has a smaller mesh size (40 mesh). The screen is designed to vibrate in a circular motion, which helps in evenly distributing the material across the mesh surfaces. As the material moves across the vibrating screen, particles smaller than the mesh size fall through, while larger particles are retained and discharged separately. This process ensures that waste materials are efficiently separated from the crude oil, improving the overall quality of the final product.

Double Deck Circular Vibrating Screen Material and Construction

Constructed from stainless steel 304, the Double Deck Circular Vibrating Screen combines durability with corrosion resistance. The stainless steel material ensures that the screen can withstand the rigorous conditions of continuous operation in a palm oil mill environment, while also preventing contamination of the crude oil.

Double Deck Circular Vibrating Screen Key Features

• Size Diameter: The screen has a diameter of 1500 mm, providing sufficient screening area for efficient waste separation.

• Weight: Weighing 500 kg, the screen is built to provide stable and reliable operation during continuous use.

• Driver Model: The vibrating screen is driven by a motor connected to a swing block, ensuring efficient power transmission and smooth vibrating motion.

• Capacity: Designed to handle a capacity of 16 m³ per hour, making it suitable for medium-scale palm oil processing operations.

• Power: Equipped with a motor rated at 1450 rpm, 2.2 kW, 380 V, and 50 Hz, providing sufficient energy for reliable and high-performance screening.

• Mesh Size: Features two mesh layers with sizes of 40 mesh and 20 mesh, both made from stainless steel 304, ensuring precise separation of waste materials.

Double Deck Circular Vibrating Screen Performance Advantages

• High - Efficiency Screening: The double deck design with two different mesh sizes ensures thorough separation of waste materials, improving the quality of the crude palm oil.

• Durable Construction: The stainless steel 304 material ensures long-term reliability and minimal maintenance requirements, even under continuous and demanding operating conditions.

• Stable Operation: The motor and swing block drive system ensures consistent vibrating motion and stable screening performance.

• Easy Maintenance: The screen's design allows for easy access to the mesh layers for cleaning and maintenance, reducing downtime and operational costs.

• Energy - Efficient Operation: The motor and drive system are designed to minimize energy consumption while maintaining high - performance screening action.

Double Deck Circular Vibrating Screen Applications

The Double Deck Circular Vibrating Screen is widely used in palm oil mills and processing plants. It is typically installed after the crude oil extraction process to screen and remove waste materials from the crude palm oil. Its design and specifications make it suitable for integration into both new and existing palm oil processing facilities, enhancing their ability to produce high-quality crude palm oil efficiently and effectively.
