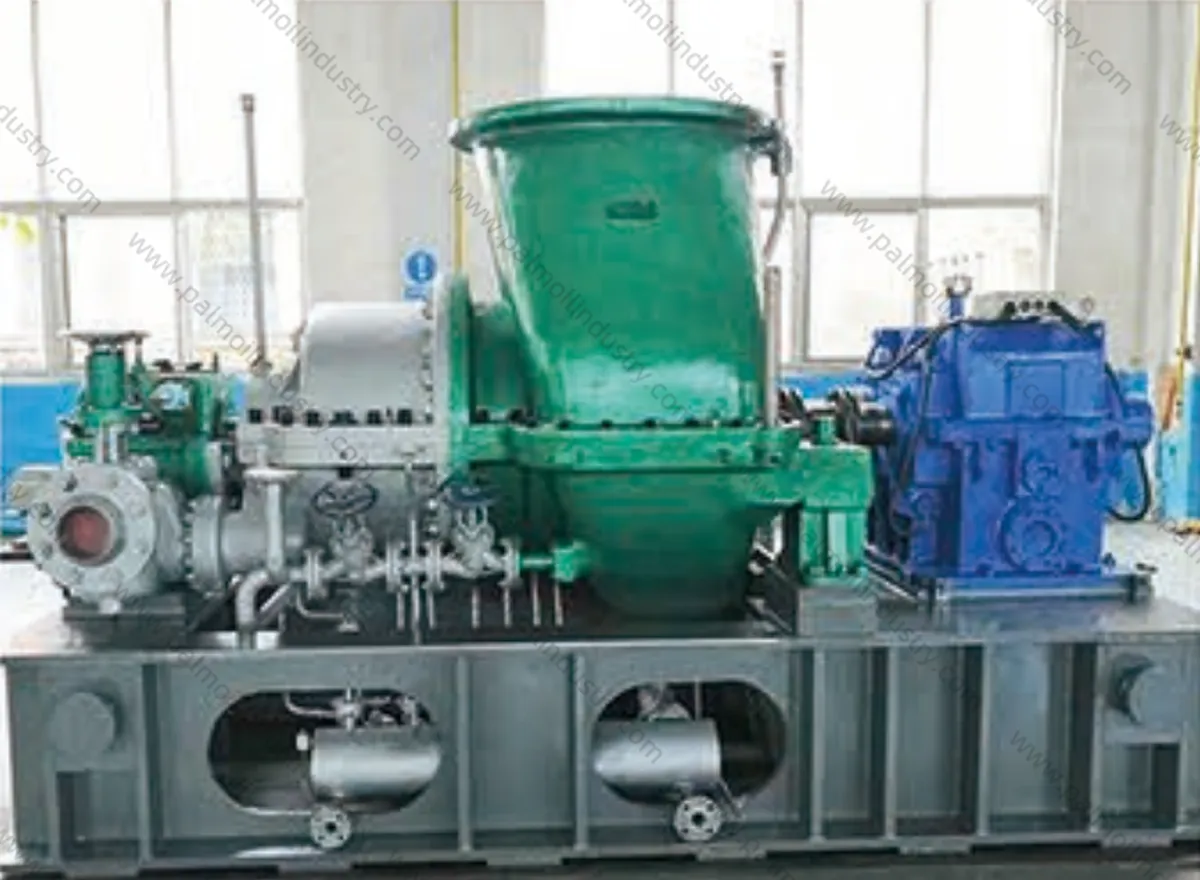

1.5MW-25MW Condensing Steam Turbine Electric Generator Sets

Name: 1.5MW-25MW Condensing Steam Turbine Electric Generator Sets
Brand: Zhengzhou YAHUA Cereals and Oils Engineering Co.,Ltd.
Price: 4500000 USD

Condensing steam turbines refer to turbines where steam, after expanding and performing work within the turbine,enters the condenser to condense into water, with only a small portion escaping through shaft seals. The condensing equipment primarily consists of the condenser, circulating water pump, condensate pump, and ejector. Exhaust steam from the turbine enters the condenser, where it is cooled by circulating water and condensed into liquid water. This condensate is pumped out by the condensate pump, heated through multiple stages of heaters, and then fed back to the boiler as feedwater. During condensation within the condenser, the steam's volume rapidly contracts, creating a vacuum in the previously steam-filled enclosed space. This reduces the turbine's exhaust pressure, increasing the ideal enthalpy drop of the steam and thereby enhancing the plant's thermal efficiency. Non-condensable gases (primarily air) in the exhaust steam are extracted by the ejector to maintain the required vacuum level.

Get a Quote 

1.5MW-25MW Condensing Steam Turbine Electric Generator Sets Specification

Model	Power (MW)	RPM (r/min)	Intake Parameters			GC kg/kw.h)	EP (MPa)	Weight (t)	Size LxWxH(mm)
Model	Power (MW)	RPM (r/min)	Press(MPa)	Temp(℃)	GFR(t/h)	GC kg/kw.h)	EP (MPa)	Weight (t)	Size LxWxH(mm)
N1.5-1.27	1.5	5600	1.27	300	9.49	6.33	0.0063	12.1	3655×2200×1950
N1.5-1.27	1..5	5600	1.27	340	8.75	5.83	0.0103	25	4112×2652×2515
N1.5-2.35	1.5	6500	2.35	390	8.41	5.61	0.0103	17	3655×2240×2115
N1.5-235	1.5	6500	2.35	390	8.27	5.51	0.009	12.1	3655×2200×1950
N1.5-3.43	1.5	6500	3.43	435	7.32	4.88	0.008	12.1	3655×2200×1950
N3-1.25	3	5600	1.25	310	19	6.33	0.01	25	4110×2655×2510
N3-2.35	3	5600	2.35	390	16	5.33	0.0103	25	4110×2655×2510
N3-2.35	3	5600	2.35	390	16	5.33	0.0103	25	4245×2440×1960
N3-2.35	3	5600	2.35	300	17.45	5.82	0.0105	25.3	4230×2440×1955
N3-3.43	3	5600	3.43	435	13.3	4.43	0.0103	25	4440×2400×1965
N3-4.9	3	6500	4.9	470	13.7	4.57	0.00S	25	4440×2400×1965
N4.5-4	4.5	3000	4	435	21.1	4.69	0.012	25	4440×2400×1965
N5-2.35	5	3000	2.35	390	26	5.20	0.0098	16.5	3750×3150×2040
N5-3.43	6	3000	3.43	435	27	4.50	0.0081	16.5	3750×2295×2825
N6.3-3.82	6.5	3000	3.82	385	33	5.24	0.008	16.5	3750×2295×2825
N7-3.43	7	3000	3.43	435	31.11	4.44	0.011	16.8	3730×3150×2040
N12-3.43	12	3000	3.43	435	53	4.42	0.0075	47	5500×3100×3255
N15-3.43	15	3000	3.43	435	68.2	4.55	0.0067	49.5	5550×3120×3250
N18-3.43	15	3000	3.43	435	82.8	4.60	0.0104	50	5550×3120×3250
N25-8.83	25	3000	8.83	500	104.5	4.18	0.0041	130	7200×4400×3300

Condensing Steam Turbine Electric Generator Sets Performance Characteristics

Condensing steam turbine units are multi-stage condensing turbines featuring high steam cycle utilization. They can extract steam for industrial processes or heating systems. The turbine exhaust enters the condenser, where it condenses into water, is recovered, reheated, and returned to the boiler for reuse. The turbine exhaust pressure is below atmospheric pressure. Operating safely and reliably, it is widely applied across multiple industries including thermal power generation, petroleum, chemical processing, printing and dyeing, textiles, cement, sugar refining, and papermaking.

Structure: Quick-assembly double-support impulse multi-stage small steam turbine

Layout: Single-deck or double-deck

Speed Control System: American Company 505 digital governor, German electro-hydraulic converter, hydraulicactuator manufactured with Siemens technology

Overspeed Protection: Dual mechanical fly-hammer type with electromagnetic valve and electronic intelligent control

Steam Seal Type: Stainless steel labyrinth steam seal

Main Steam Valve: Integrated automatic main steam valve (combination regulating valve)

Main Shaft Assembly: Redundant-speed stage rotor blades, interference fit between rotor and rotor blades, blades in embedded configuration

Lubrication System: Forced oil lubrication with oil tank, thin oil station, and cooler

Thermal Expansion Compensation: Sliding thermal compensation for front bearing support

Electrical Configuration: Complete set of electrical control cabinets, protection cabinets, main control cabinets, paired with Siemens generator

Cranking Device: Electric cranking
