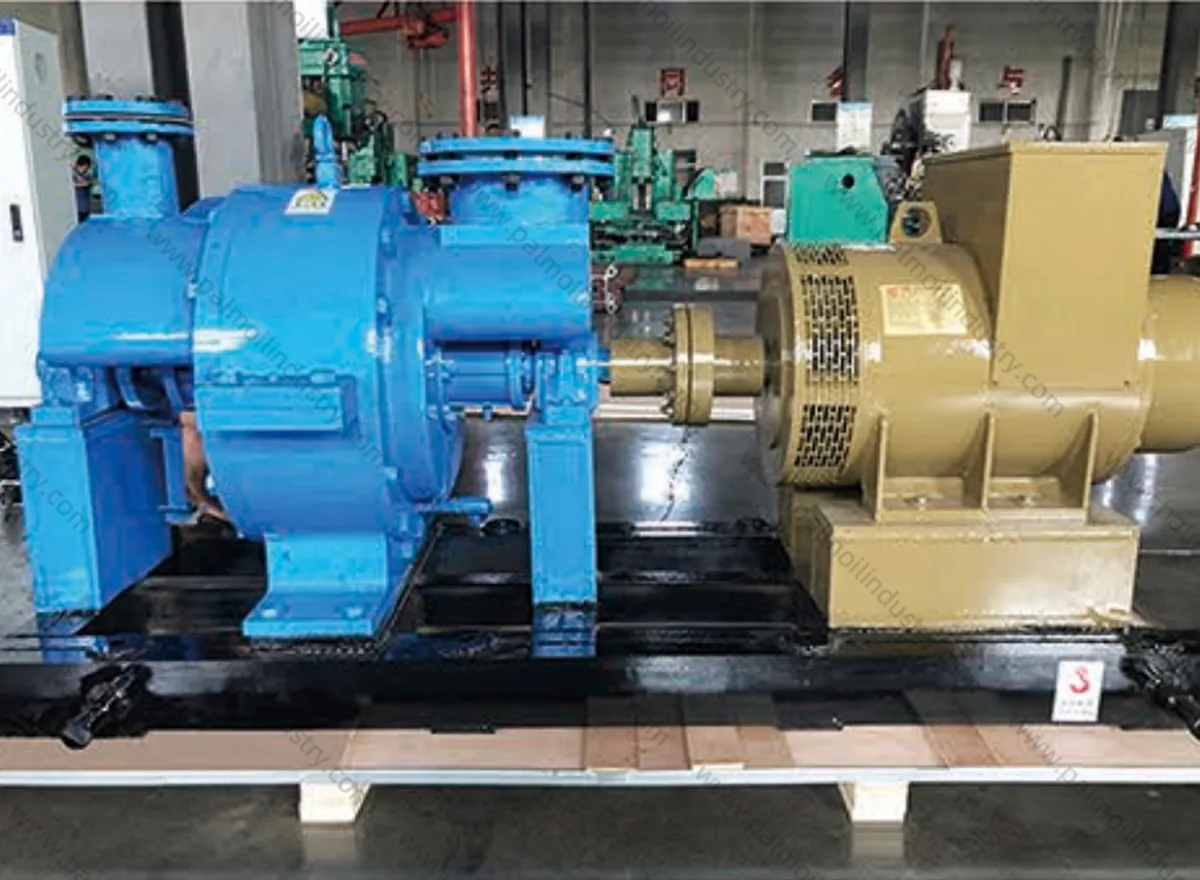

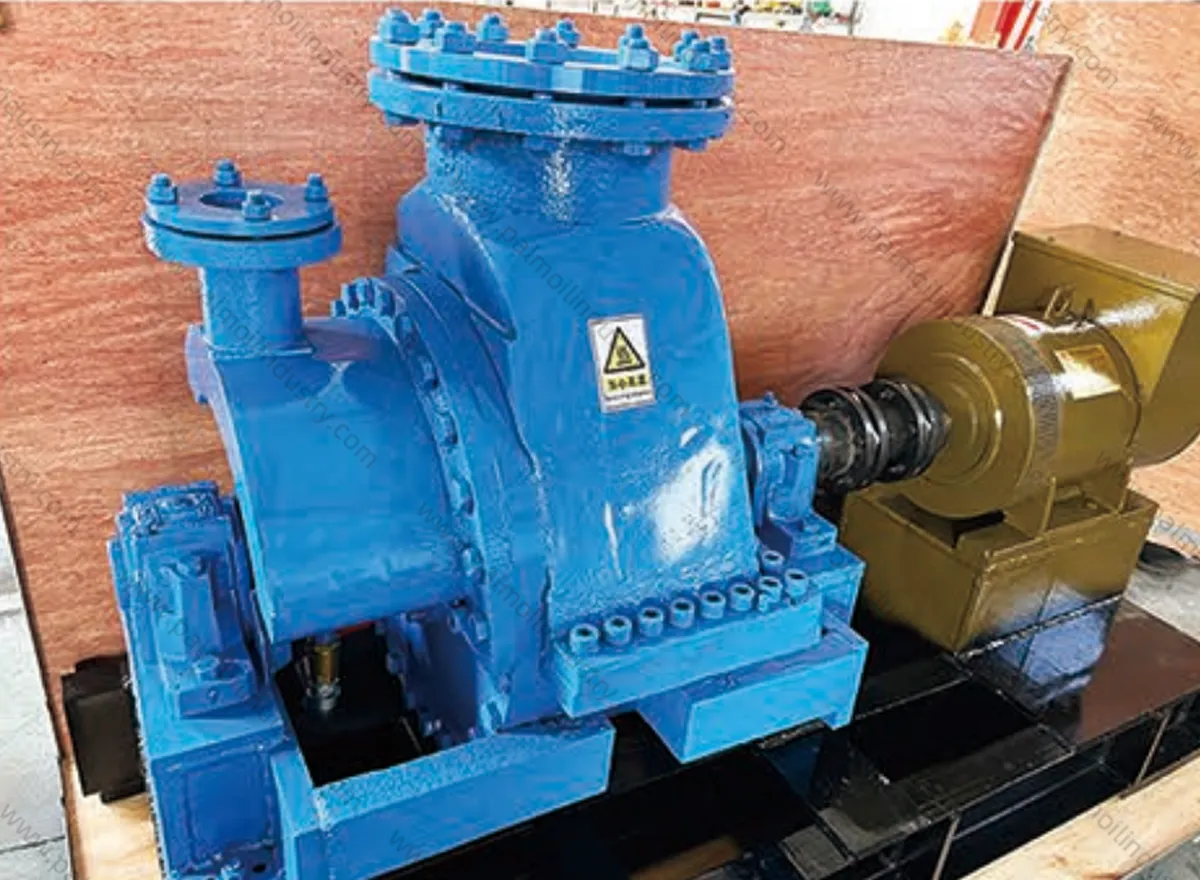

1-600KW Micro Turbine Sets

Name: 1-600KW Micro Turbine Sets
Brand: Zhengzhou YAHUA Cereals and Oils Engineering Co.,Ltd.
Price: 4500000 USD

We are industry leaders in micro-turbine manufacturing, boasting extensive experience, low profit margins, and high quality. Our operations rely on consistent production volumes to sustain the company. We welcome more clients to partner with us, driving us to produce even more efficient turbines.

Get a Quote 

1-600KW Micro Turbine Sets Specification

Model	Power (MW)	RPM (r/min)	Intake Parameters			GC (kg/kw.h)	EP (MPa)	Weight (t)	Size LxWxH(mm)
Model	Power (MW)	RPM (r/min)	Press(MPa)	Temp(℃)	GFR(t/h)	GC (kg/kw.h)	EP (MPa)	Weight (t)	Size LxWxH(mm)
NO.05-1.27	30-50	3000	1.27	300	0.31	6.2	0.06	0.33	506×211×621
NO.07-1.27	50-70	3000	1.27	300	0.45	6.42	0.06	0.43	560×251×652
NO.03-1.27	1-30	1500	1.27	300	0.2	6.67	0.06	0.16	322×211×351
N0.1-1.27	70-100	3000	1.27	300	0.64	6.36	0.06	0.55	706×403×666
N0.15-1.27	150	3000	1.27	300	0.95	6.35	0.05	0.62	735×432×701
N0.2-1.27	200	3000	1.27	300	1.272	6.36	0.05	0.7	821×456×801
N0.3-1.27	300	3000	1.27	300	1.9	6.33	0.05	0.76	850×475×855
N0.4-1.27	400	3000	1.27	300	2.66	6.63	0.05	0.81	933×520×900
N0.5-1.27	500	3000	1.27	300	8.125	6.25	0.05	0.88	988×622×956
N0.55-1.27	550	3000	1.27	300	3.71	6.74	0.05	0.9	988×635×975
N0.6-1.27	600	3000	1.27	300	4.02	6.7	0.05	0.95	1010×755×1000
B0.05-1.27/0.2	30-50	3000	1.27	300	0.786	26.2	0.2	0.31	506×211×621
B0.07-1.27/0.2	50-70	3000	1.27	300	1.321	26.42	0.2	0.43	560×251×652
B0.03-1.27/0.2	1-30	3000	1.27	300	0.027	26.67	0.2	0.16	322×211×351
B0.1-1.27/0.2	70-100	3000	1.27	300	1.845	26.36	0.2	0.55	706×403×666
B0.15-1.27/0.2	150	3000	1.27	300	3.953	26.35	0.2	0.62	735×432×701
B0.2-1.27/0.2	200	3000	1.27	300	5.272	26.36	0.2	0.7	821×456×801
B0.3-1.27/0.2	300	3000	1.27	300	7.899	26.33	0.2	0.76	850×475×855
B0.4-1.27/0.2	400	3000	1.27	300	10.652	26.63	0.2	0.81	933×520×900
B0.5-1.27/0.2	500	3000	1.27	300	18.125	26.25	0.2	0.88	988×622×956
B0.55-1.27/0.2	550	3000	1.27	300	14.71	26.74	0.2	0.9	988×635×975
B0.6-1.27/0.2	600	3000	1.27	300	16.02	26.70	0.2	0.95	1010×755×1000

Micro Turbine Sets Performance Features

The M and H series turbines include back-pressure and condensing types. Impeller pitch circle diameters range from 380 to 500 mm, with main shaft speeds of 3000 and 5600 rpm.

They utilize fresh steam or waste heat exhaust steam, saturated or superheated steam, with inlet steam pressure as low as 0.15 MPa.

Power range: 1KW-650KW power generation turbine units.

Micro Turbine Sets Unit Features

Wide operating range: 0.15 MPa to 2.5 MPa working pressure. Single-layer skid-mounted installation design tailored to power requirements and user specifications. Also known as micro-turbines, these units feature simple installation—fully assembled within 5 days of delivery and commissioned within 2 days.

Control Method: Simple structure, easy operation, high safety factor, equipped with a human-machine interface touchscreen control panel. Steam source can be either superheated steam or saturated steam. The turbine generator set adopts a direct-couplingconfiguration, ensuring high safety, long service life, and reduced susceptibility to damage.

Key Point: Custom-designed turbines tailored to actual user parameters to accommodate diverse steam sources.

Micro Turbine Application

Primarily applied in ceramics, cement, power plants, chemical, chemical fiber, papermaking, sugar refining, steel, waste treatment, and energy utilization sectors such as corporate captive power stations, district cogeneration, municipal waste to-energy plants, and gas-steam combined cycle power generation. The equipment offers lower operating costs and more significant economic benefits. Our company is committed to providing users with first-class products and premium services!
